Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)

Compatible Displays

Axiom, Axiom+ Axiom Pro, Axiom 2 Pro, Axiom XL (Requires LightHouse 3.9 or newer software)

Dimensions (surface mount)

Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)

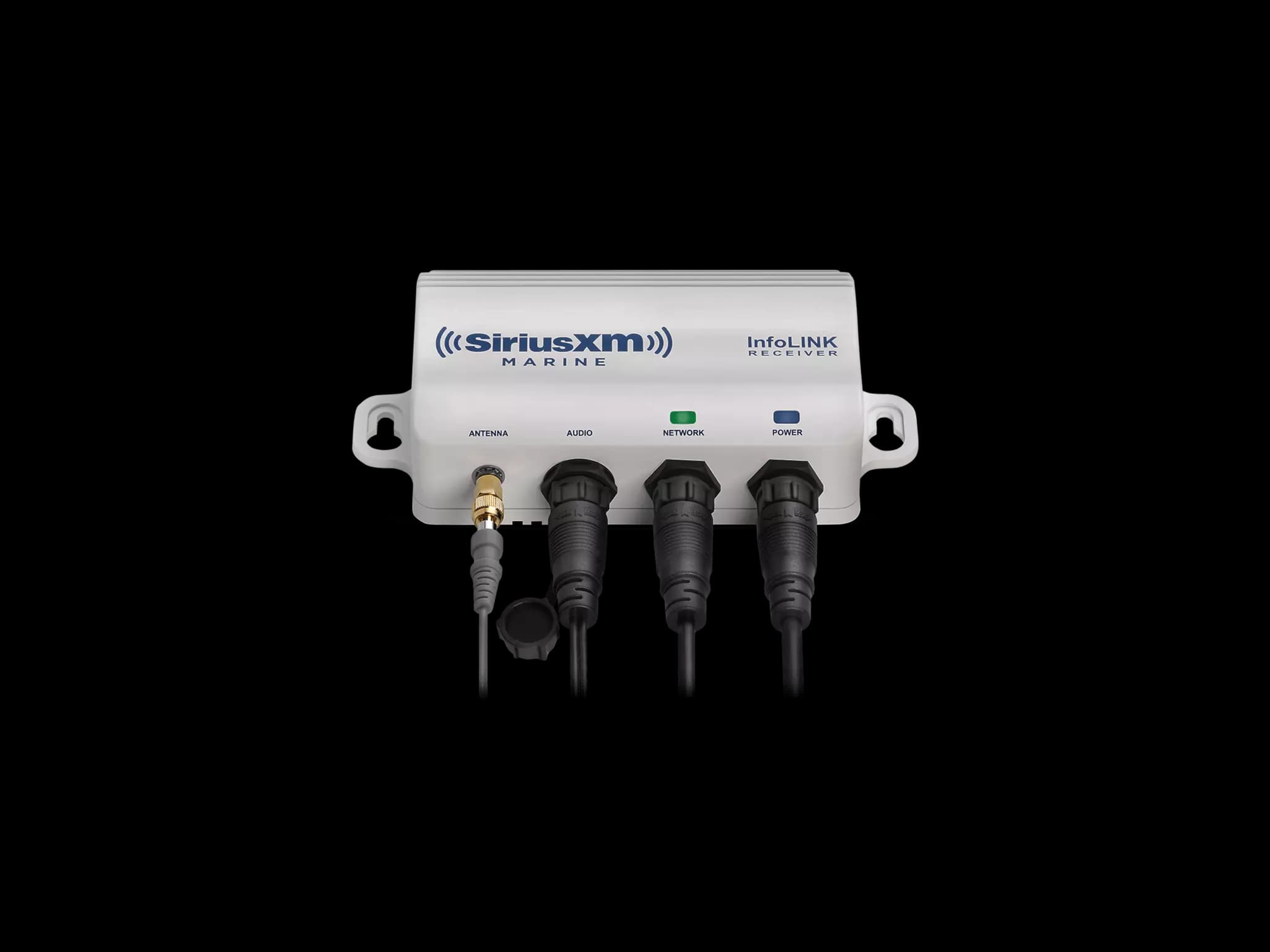

SiriusXM Subscription Options

Marine Coastal, Marine Offshore and Fish Mapping

Weight (display only)

Element 7: 1.0 Kg (2.2lbs)Element 9: 1.3 Kg (2.86lbs)Element 12: 2.0 Kg (4.4lbs)

Audio Subscription Options

SiriusXM Channel Line-up

Size (diagonal):

Element 7: 7.0"Element 9: 9.0"Element 12: 12.1"

Dimensions

7.1in wide x 3.56in depth x 1.65in high ( 180mm wide x 90.4 depth x 42mm high)

Resolution

Element 7: WVGA 800 x 480Element 9: WVGA 800 x 480Element 12: WXGA 1280 x 800

Water Ingress Protection

IPX6/7

Ratio

Element 7: 5:3Element 9: 5:3Element 12: 8:5

Operating Temperature Range

-20ºC to 70ºC (-4ºF to 158ºF)

Viewing angle (T / B / L / R):

Element 7: 50° / 60° / 70° / 70°Element 9: 50° / 70° / 70° / 70°Element 12: 89° / 89° / 89° / 89°

Storage temperature range

-40ºC to 85ºC (-40ºF to 185ºF)

Type

Element 7: TN (Twisted Nematic)Element 9: TN (Twisted Nematic)Element 12: IPS (In-Plane Switching)

Nominal Voltage

12 or 24 V dc

Color depth

24-bit

Operating Voltage Range

+9 to 32 V dc

Maximum Illumination

1500 nits / 1500 cd/m2

Ethernet

1 RayNet type Ethernet port

Operating voltage range

8 V dc to 16 V dc (protected up to 32 V dc)

SeaTalkNG

No Connection

Power consumption (Approximate @ 12 V dc)

Element 7: 15 WattsElement 9: 20 WattsElement 12: 25 Watts

SIRIUS Audio Out (line level)

4-pin audio output to 3.5mm stereo male

Nominal supply voltage

12 V dc

SIRIUS Antenna Input

1 connection (SMA) Antenna SMA - SMB adaptor - 20mm Provided

Fuse requirements

Inline fuse = 5 A, Thermal breaker = 3 A

LEN (NMEA 2000 Load Equivalency Number)

1 (Based on 9 V dc nominal voltage)

SeaTalkng / NMEA 2000

1 x DeviceNet female connector built into power cable

2.4 GHz Wi-Fi

1 x 802.11/b/g/n

Transducer

1 x 15-pin HyperVision connector

350 kHz (Standard) range

RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)

1.2 MHz (Hyper) range

RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)

Sonar channels

Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)

200 kHz range

Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)

Frequencies

1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP

Power

1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W

External

1 x MicroSDXC card slot

Operating temperature range

-25°C (-13°F) to +55°C (+131°F)

Humidity

up to 93% @ 40°C (+104°F)

Waterproof rating

IPx6, IPx7

Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time

Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)

Channels

Multiple - ability to simultaneously track up to 28 satellites

Antenna

Internal - Ceramic chip mounted near top of unit

GNSS compatibility

GPS, GLONASS, Beidou

SBAS compatibility

EGNOS, GAGAN, MSAS, QZSS, WAAS

Signal Acquisition

Automatic

Almanac Update

Automatic

Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)

Operating frequency

1574 MHz to 1605 MHz

Cold start

< 2 minutes

Standards

EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15
