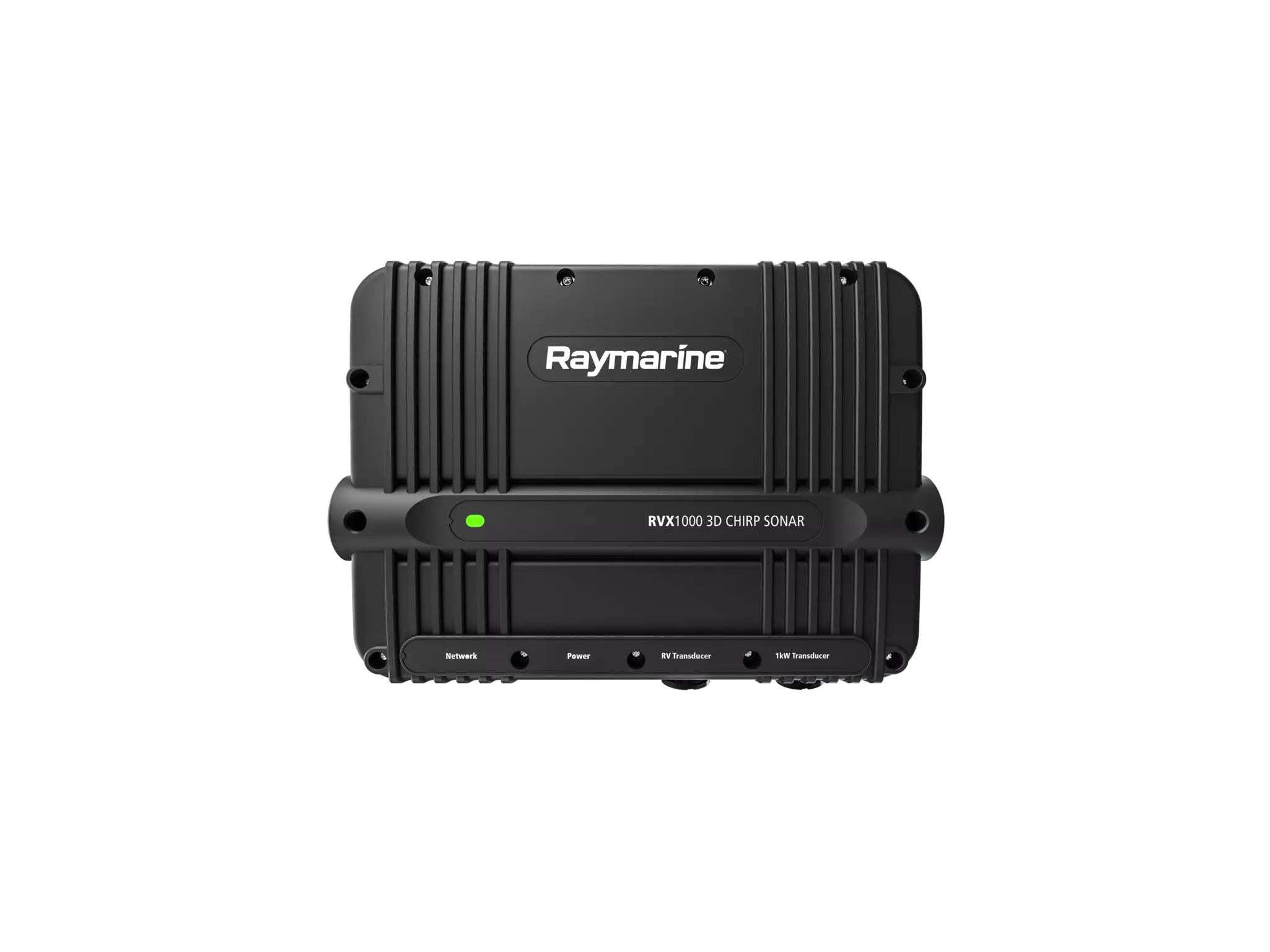

RVX1000
OEM: E70511
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70511"
Product Details (15)
Relative humidity
up to 93% @ 40°C (104°F)
Waterproof rating
IPx6, IPx7
Storage temperature
-30°C to +70°C (-22°F to 158°F)
Operating temperature
-25°C to +55°C (-13°F to 131°F)
Power output
Up to 1 kW RMS
Depth range
0.9 m (3 ft) to 1,524 m (5,000 ft) (in optimum conditions using a 1 kW transducer)
Connections
Power connection, Network connection (RayNet connector) 10 / 100 Mb/s, Transducer connection x 2
Dimensions
Height: 188.0 mm (7.40 in), Width: 299.4 mm (11.79 in), Depth: 84.4 mm (3.32 in)
Weight
1.59 kg (3.49 lbs)
Standards
EN 60945:2002, EMC Directive 2014/30/EU, EN 60950-1:2006+A2:2013, Australia and New Zealand: C-Tick, Compliance Level 2
Fuse rating
5 A
Current
2.4 A Peak; 1.2 A RMS
Nominal supply voltage
12 V dc / 24 V dc
Operating voltage range
10.8 V dc to 31.2 V dc
Power consumption
10.4 W
