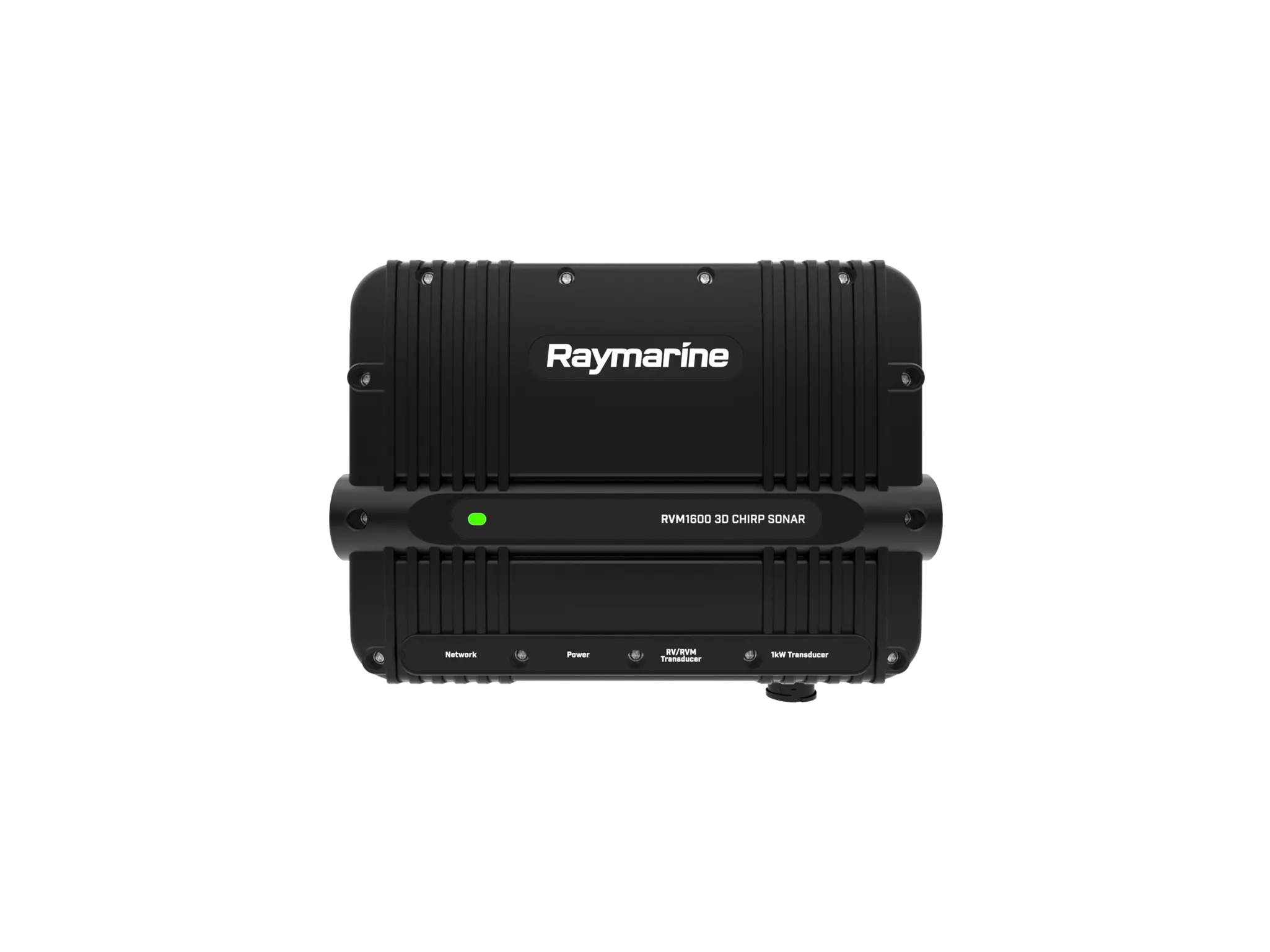

RVM1600
OEM: E70665
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70665"
Product Details (21)
Relative humidity
up to 93% @ 40 °C (104 °F)
Waterproof rating
IPx6, IPx7
Non-operating temperature
-30 °C (-22 °F) to +70 °C (158 °F)
Operating temperature
-25 °C (-13 °F) to +55 °C (131 °F)
Power output
RealVision MAX high CHIRP sonar channel: 600 Watts RMSTraditional dual channel CHIRP channel: 1kW RMS
Sonar channels
RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)1kW CHIRP Port: 42 - 250kHz (Transducer dependent)
Connections
1x 3-pin Male power connector, 1x 10-pin RayNet network connector, 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, 1x 11-pin 1kW transducer connector
Product markings
UKCA, CE, Australian RCM C-Tick, RoHS, WEEE Directive
Standards
EMC Directive 2014/30/EU, RoHS II 2011/65/EU, Worldwide Safety EN/IEC 62368-1, Europe, UK, Australia, New Zealand: EN/IEC 60945:2002, Australia and New Zealand: C-Tick, Compliance Level 2, Canada: ICES-003 (exempt when factory installed in a transport vehicle), USA: CFR47 Part 15b (SDoC exempt, installed in transport vehicle), Japan / China: ABS/CCS IEC 60945:2002, FCC Part 15.19, FCC Part 15.105 (b), ISEDC ICES-003
Depth
84.4 mm (3.32 in)
Width
299.4 mm (11.79 in)
Height (including cable bend radius)
285.6 mm (11.24 in)
Height (including connectors)
205.6 mm (8.09 in)
Height
188.0 mm (7.40 in)
Weight
1.585 kg (3.49 lbs)
Inline fuse rating
5 A
Thermal breaker rating
5 A
Current
2.4 A Peak; 1.2 A RMS (Maximum) @ 12 V dc
Nominal supply voltage
12 V / 24 V dc
Operating voltage range
10.8 V to 31.2 V dc
Power consumption
10.4 W (Maximum)
