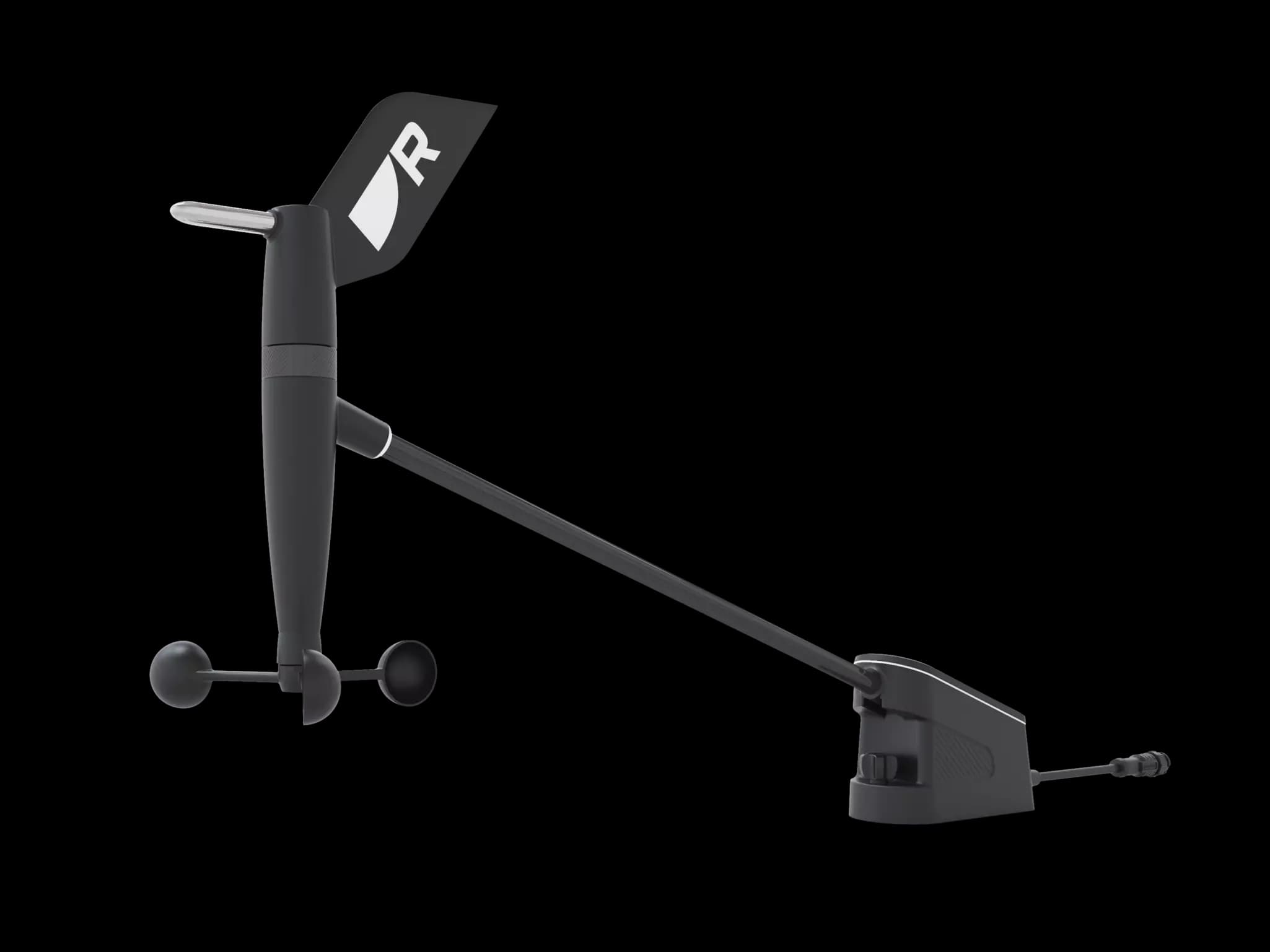

RSW Wired
OEM: E70670
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
UnavailableDefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
UnavailableFisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
UnavailablePartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
UnavailableSearching for: "Raymarine E70670"
Product Details (19)
Length
Wind transducer (including cable): 657.762 mm (25.90 in)Wind transducer (excluding cable): 540.712 mm (21.29 in)Wired gateway: 155.61 mm (6.13 in)
Width
Wind transducer: 46.96 mm (1.85 in)Wired gateway: 47.38 mm (1.88 in)
Height
Wind transducer: 305.86 mm (12.04 in)Wired gateway: 30.61 mm (1.21 in)
Nominal supply voltage
12 V dc (via SeaTalk NG)
Operating voltage range
9 V to 16 V dc
Power Consumption
< 100 mW
Fuse rating
Ensure that the SeaTalk NG backbone is protected by a 5 A fuse
NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating:
1
Operating temperature range
-25°C to +55°C (-13°F to +131°F)
Storage temperature range
-30°C to +70°C (-22°F to +158°F)
Relative humidity
Masthead: 100%Below deck: up to 93% @ 40°C
Waterproof rating
Wind transducer: IPx6/IPx7Wired gateway: IPx3
Wind
115 mph (185 kph)
Vibration
EN 60945:2002 (exposed)
Europe, Australia & New Zealand
EN 60945:2002
Canada
ICES-003
USA
CFR47 Part 15
Japan / China
IACS section E10
Product markings
UKCACEAustralian TickWEEE DirectiveIndustry Canada
