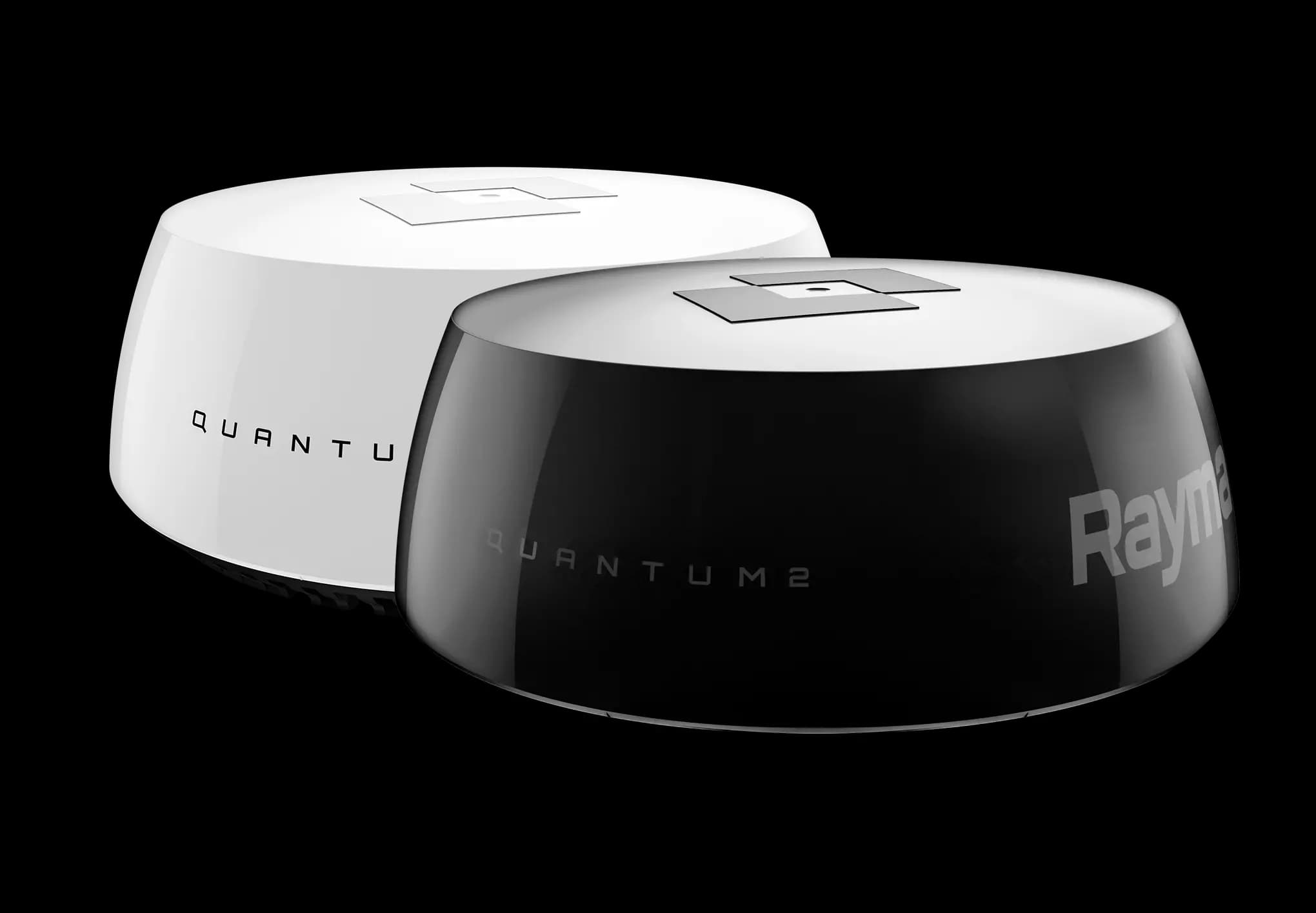

Quantum 2 Q24D Doppler 18" Radar with 15m Power Cable and 15m Data Cable
OEM: T70550
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine T70550"
Product Details (56)
Dimensions: Diameter | Height
541.0 mm | 209.5 mm
Weight
5.6 kg (12.35 lbs)
Supply voltage
Either 12 V dc or 24 V dc nominalMinimum: 10.8 V dc | Maximum: 31.2 V dc
Operating voltage range
Minimum: 10.8 V dc | Maximum: 31.2 V dc
Power Consumption
Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
Waterproofing
IPX6
Operating temperature range
-10°C to +55°C
Storage temperature range
-25°C to +70°C
Additional storage conditions
Store upright; do not block vents on underside
Humidity
Up to 95% at 35°C
Maximum wind speed
100 knots
Type
Patch array
Transmit frequency
9354 MHz to 9446 MHz
Peak power output
20 W
Duplexer
Circulator
Pulse widths (3 dB)
40 ns to 14.7µs
Chirp lengths
400 ns to 22 us
Pulse repetition frequency
920 Hz to 5900 Hz
Chirp bandwidth
Up to 32 MHz
Standby mode
Rotation: OFF, Transmission: OFF, Wi-Fi: ON
Beamwidth (nominal)
Horizontal: 4.9°, Vertical: 20°
Polarization
Horizontal
Rotation speed
24 RPM
IF frequency
26 MHz
Noise figure
Less than 4 dB
Target Tracking
Tracking of 25 simultaneous MARPA and / or ARPA targets
Target Filtering
True Motion mode identifies only those objects that are moving relative to the vessel
Transmitter type
X-band solid-state transmitter with pulse compression technology
Target tracking
Track up to 25 simultaneous Radar targets
Antenna type
Patch Array
Noise
Less than 4 dB
CHIRP lengths
400 ns to 22 µs
Standards
USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3
Relative humidity
Up to 95% @ 35°C (95°F)
Waterproof rating
IPx6
Storage temperature
-25°C to +70°C (-13°F to 158°F)
Operating temperature
-10°C to +55°C (14°F to 131°F)
Dimensions
Height: 209.5 mm (8.25 in), Diameter: 541.0 mm (21.3 in)
Axiom 2 XL - 16", 19", 22" and 24" models
Yes
Axiom 2 Pro - 9", 12" and 16" RVM and -S variants
Yes
Axiom+ - 7", 9" and 12" RV and chartplotter variants
Yes
Element - 7", 9" and 12" HV and -S variants
Yes2
Axiom XL - 16", 19", 22" and 24" models
Yes
Axiom Pro - 9", 12" and 16" RVX and -S variants
Yes
Axiom - 7", 9" and 12" RV and chartplotter variants
Yes
gS-Series - gS95, gS125 and gS165
Yes3
eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165
Yes3
e-Series - e7, e7D, e95, e97, e125, e127, e165
No
c-Series - c95, c97, c125, c127
No
a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128
No
E-Series Widescreen - E90W, E120W, E140W
No
C-Series Widescreen - C90W, C120W, C140W
No
G-Series Classic - GPM400
No
E-Series Classic - E80, E120
No
C-Series Classic - C70, C80, C120
No1
Notes
1 - C-Series Classic chartplotter displays are only compatible with analog radar scanners, discontinued.2 - Doppler mode is not available when connected to an Element series display3 - eS Series and gS Series displays running LightHouse 3 only support a wired connection to Quantum; wireless (Wi-Fi) connection is NOT supported.
