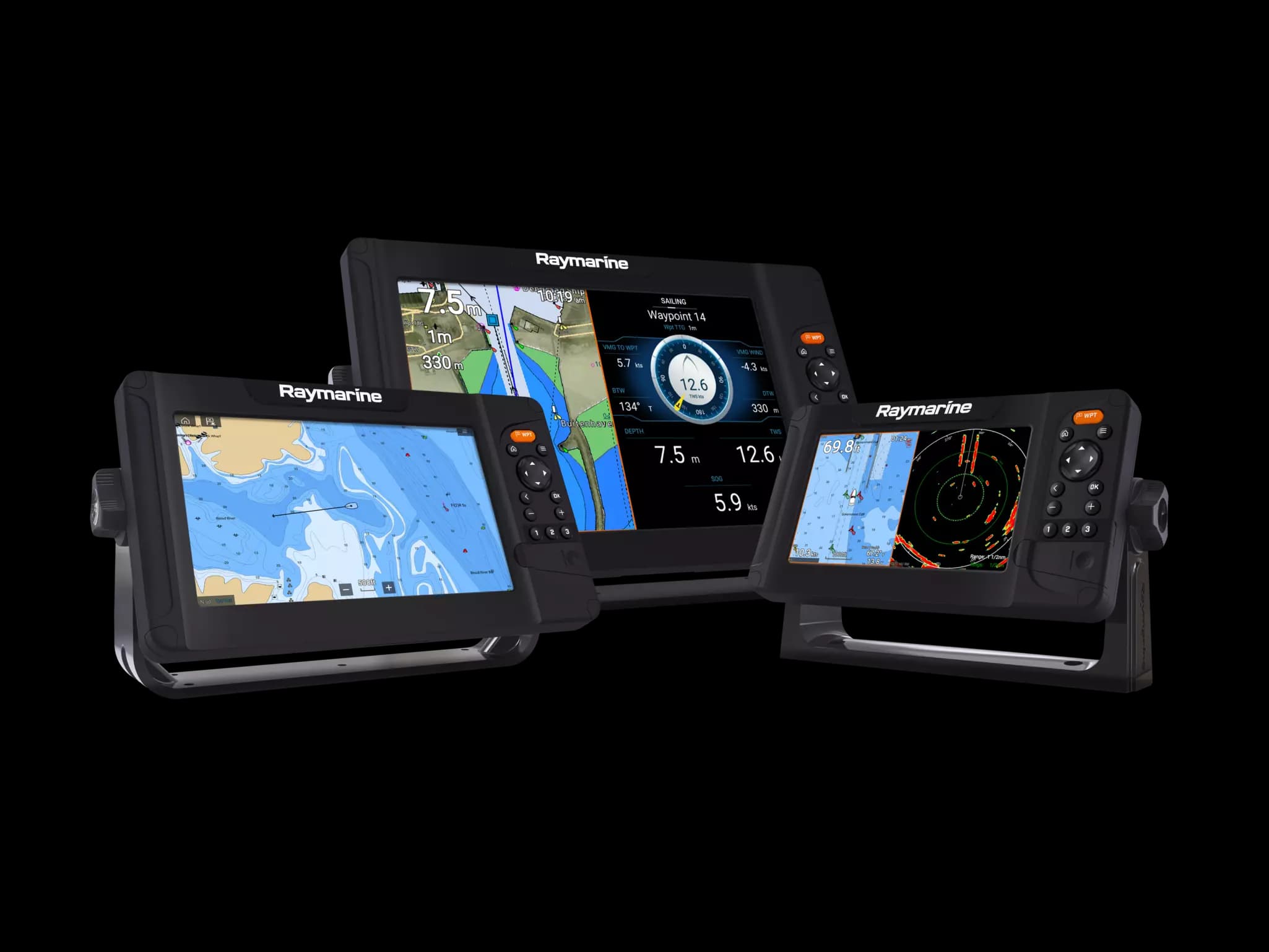

Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)

Dimensions (Trunnion mounted)

Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)

Dimensions (surface mount)

Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)

Dimensions (Surface/Flush mounted)

Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)

Weight (display only)

Element 7: 1.0 Kg (2.2lbs)Element 9: 1.3 Kg (2.86lbs)Element 12: 2.0 Kg (4.4lbs)

Accessory connection

USB Micro B

Size (diagonal):

Element 7: 7.0"Element 9: 9.0"Element 12: 12.1"

Ethernet connection

RayNet (10/100 Mbits/s)

Resolution

Element 7: WVGA 800 x 480Element 9: WVGA 800 x 480Element 12: WXGA 1280 x 800

External storage

MicroSDXC card slot x 1

Ratio

Element 7: 5:3Element 9: 5:3Element 12: 8:5

NMEA 2000 connection

DeviceNet (male connector built into power cable)

Viewing angle (T / B / L / R):

Element 7: 50° / 60° / 70° / 70°Element 9: 50° / 70° / 70° / 70°Element 12: 89° / 89° / 89° / 89°

Wireless connections

Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n

Type

Element 7: TN (Twisted Nematic)Element 9: TN (Twisted Nematic)Element 12: IPS (In-Plane Switching)

Internal storage

16 GB Solid State (14 GB usable)

Color depth

24-bit

Transducer connection

25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers

Maximum Illumination

1500 nits / 1500 cd/m2

Size (diagonal)

Axiom+ 7: 7"Axiom+ 9: 9"Axiom+ 12: 12"

Operating voltage range

8 V dc to 16 V dc (protected up to 32 V dc)

Power consumption (Approximate @ 12 V dc)

Element 7: 15 WattsElement 9: 20 WattsElement 12: 25 Watts

Viewing angle

Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85°Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85°Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88°

Nominal supply voltage

12 V dc

Illumination

Axiom+ 7: 1800 nits / 1800 cd/m2Axiom+ 9:1500 nits / 1500 cd/m2Axiom+ 12: 1800 nits / 1800 cd/m2

Fuse requirements

Inline fuse = 5 A, Thermal breaker = 3 A

Protective coating

HydroToughTM Oleophobic

LEN (NMEA 2000 Load Equivalency Number)

1 (Based on 9 V dc nominal voltage)

SeaTalkng / NMEA 2000

1 x DeviceNet female connector built into power cable

2.4 GHz Wi-Fi

1 x 802.11/b/g/n

Number of simultaneous touches

Transducer

1 x 15-pin connector

Power consumption

Axiom+ 7: 9.84 WAxiom+ 9: 11.98 WAxiom+ 12: 18.96 W

External

1 x MicroSDXC card slot

350 kHz (Standard) range

RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)

Operating temperature range

-25°C (-13°F) to +55°C (+131°F)

1.2 MHz (Hyper) range

RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)

Fuse rating

7 A

Storage temperature range

-30°C (-22°F) to +70°C (+158°F)

Sonar channels

Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)

Humidity

up to 93% @ 40°C (+104°F)

200 kHz range

Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)

Waterproof rating

IPx6, IPx7

Frequencies

1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP

Depth range

CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft)

Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time

Power

1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W

Operating temperature

-25°C to +55°C (-13°F to 131°F)

Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)

Storage temperature

-30°C to +70°C (-22°F to 158°F)

Channels

Multiple - ability to simultaneously track up to 28 satellites

Relative humidity

Up to 93% @ 40°C (104°F)

Antenna

Internal - Ceramic chip mounted near top of unit

GNSS compatibility

GPS, GLONASS, Beidou

SBAS compatibility

EGNOS, GAGAN, MSAS, QZSS, WAAS

Signal Acquisition

Automatic

Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)

Almanac Update

Automatic

Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)

Operating frequency

1574 MHz to 1605 MHz

Cold start

< 2 minutes

Standards

EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15

Refresh rate

10 Hz (10 times per second)

Time to first fix from cold start

< 2 minutes
