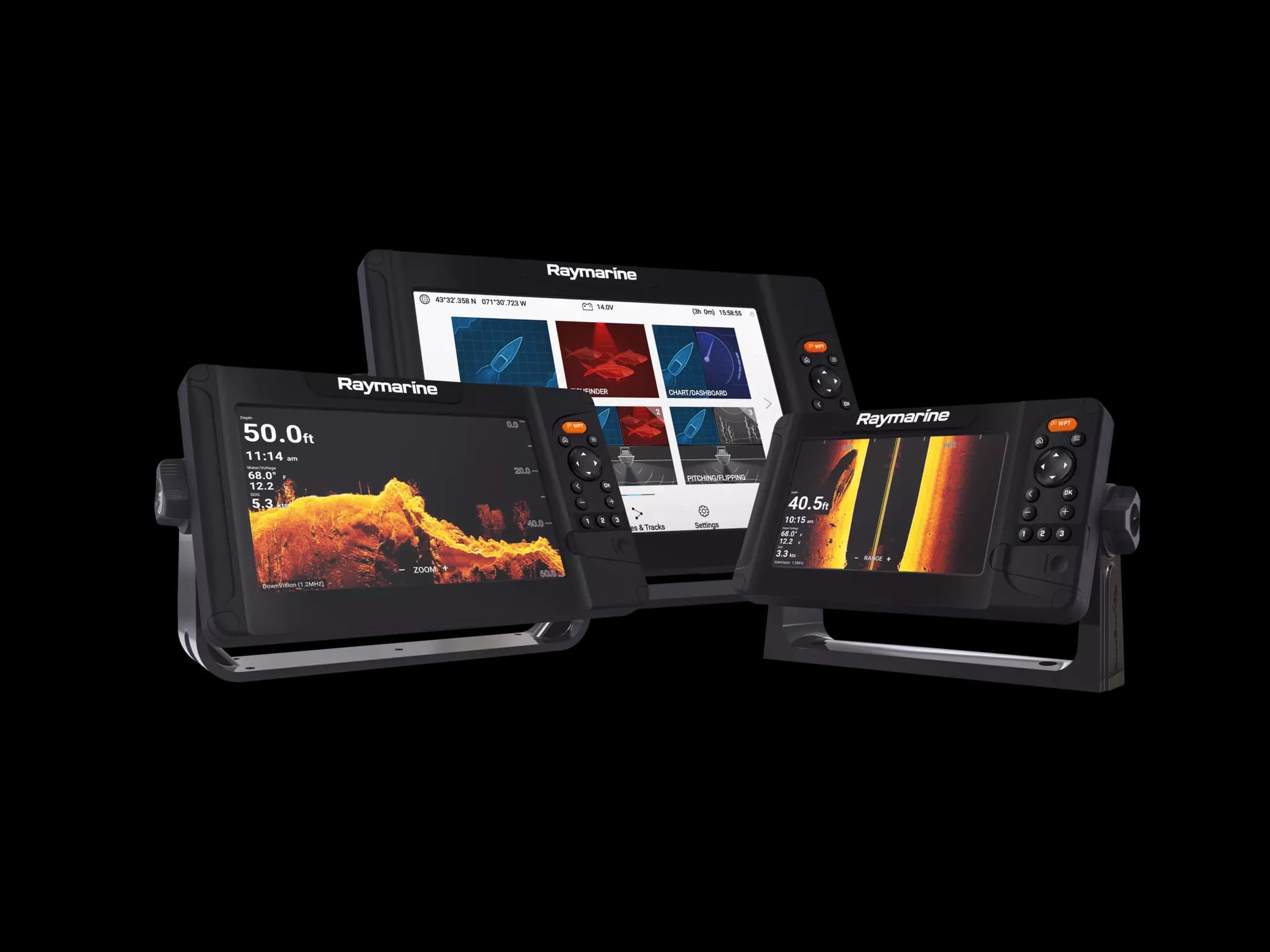

Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)

Storage compatibility

SD card, Micro SD card (via adaptor), USB A

Dimensions (surface mount)

Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)

Weight (display only)

Element 7: 1.0 Kg (2.2lbs)Element 9: 1.3 Kg (2.86lbs)Element 12: 2.0 Kg (4.4lbs)

Size (diagonal):

Element 7: 7.0"Element 9: 9.0"Element 12: 12.1"

Resolution

Element 7: WVGA 800 x 480Element 9: WVGA 800 x 480Element 12: WXGA 1280 x 800

Ratio

Element 7: 5:3Element 9: 5:3Element 12: 8:5

Viewing angle (T / B / L / R):

Element 7: 50° / 60° / 70° / 70°Element 9: 50° / 70° / 70° / 70°Element 12: 89° / 89° / 89° / 89°

Type

Element 7: TN (Twisted Nematic)Element 9: TN (Twisted Nematic)Element 12: IPS (In-Plane Switching)

Color depth

24-bit

Maximum Illumination

1500 nits / 1500 cd/m2

Operating voltage range

8 V dc to 16 V dc (protected up to 32 V dc)

Power consumption (Approximate @ 12 V dc)

Element 7: 15 WattsElement 9: 20 WattsElement 12: 25 Watts

Nominal supply voltage

12 V dc

Fuse requirements

Inline fuse = 5 A, Thermal breaker = 3 A

LEN (NMEA 2000 Load Equivalency Number)

1 (Based on 9 V dc nominal voltage)

SeaTalkng / NMEA 2000

1 x DeviceNet female connector built into power cable

2.4 GHz Wi-Fi

1 x 802.11/b/g/n

Transducer

1 x 15-pin HyperVision connector

350 kHz (Standard) range

RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)

1.2 MHz (Hyper) range

RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)

Sonar channels

Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)

200 kHz range

Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)

Frequencies

1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP

Power

1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W

External

1 x MicroSDXC card slot

Operating temperature range

-25°C (-13°F) to +55°C (+131°F)

Storage temperature range

-30°C (-22°F) to +70°C (+158°F)

Humidity

up to 93% @ 40°C (+104°F)

Waterproof rating

IPx6, IPx7

Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time

Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)

Channels

Multiple - ability to simultaneously track up to 28 satellites

Antenna

Internal - Ceramic chip mounted near top of unit

GNSS compatibility

GPS, GLONASS, Beidou

SBAS compatibility

EGNOS, GAGAN, MSAS, QZSS, WAAS

Signal Acquisition

Automatic

Almanac Update

Automatic

Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)

Operating frequency

1574 MHz to 1605 MHz

Cold start

< 2 minutes

Standards

EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15
