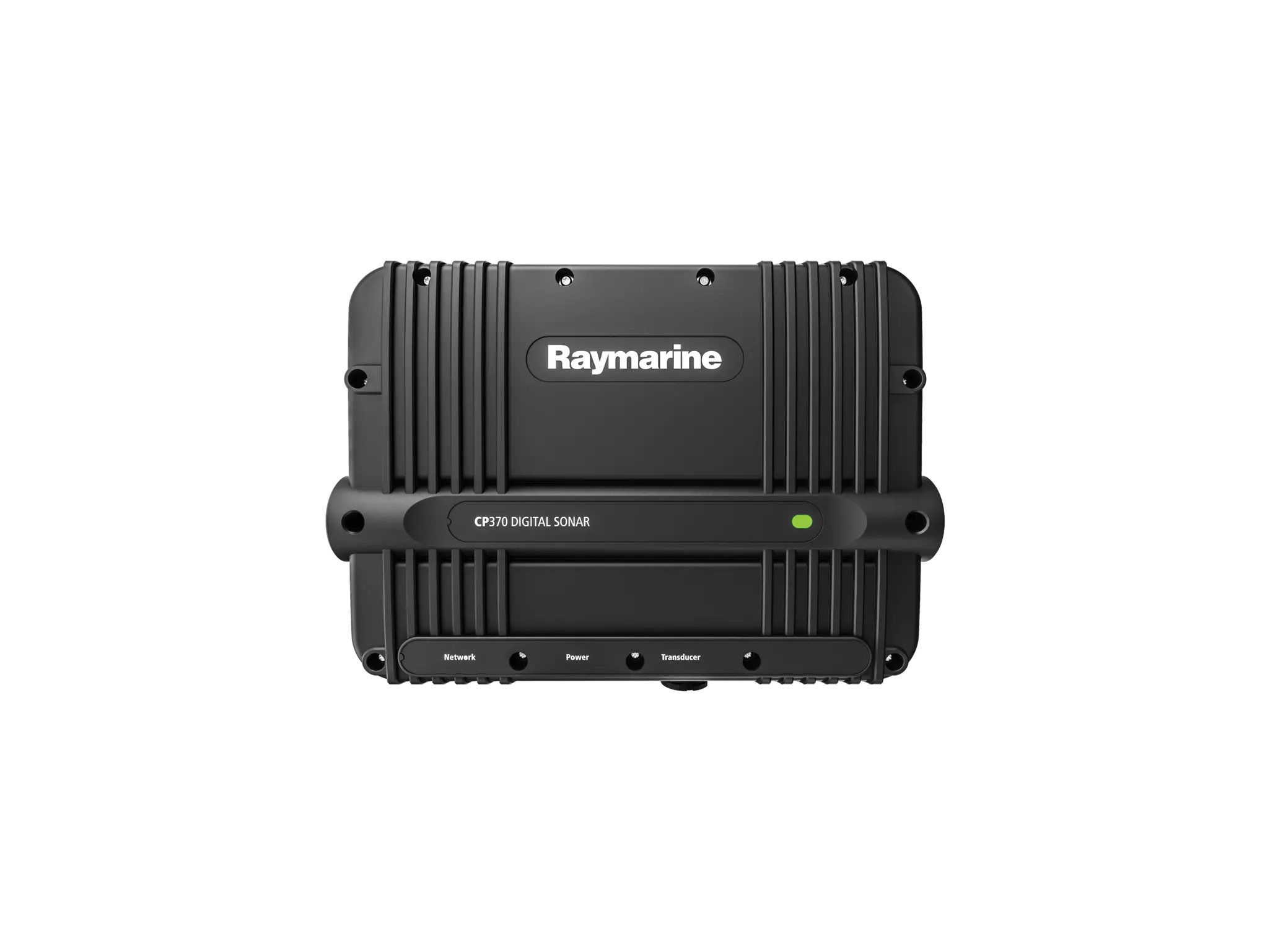

CP370
OEM: E70297
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70297"
Product Details (16)
Relative humidity
Up to 95%
Waterproof rating
IPx6
Storage temperature
-30°C to +70°C (-22°F to 158°F)
Operating temperature
-10°C to +55°C (14°F to 131°F)
Power output
Up to 1 KW RMS
Frequency
50 kHz and 200 kHz
Depth range
0.9 m (3 ft) to 1524 m (5,000 ft) (In optimum conditions and depending on transducer connected)
Connections
Power connection, Network connection (RayNet connector) 10 / 100 Mb/s, Transducer connection
Dimensions
Height: 205.6 mm (8.1 in), Width: 299.4 mm (11.79 in), Depth: 84.4 mm (3.3 in)
Weight
1.44 kg (3.16 lbs)
Standards
EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2
Fuse rating
5 A
Power consumption
30.6 W (Maximum)
Current
3 A RMS
Nominal supply voltage
12 V dc / 24 V dc
Operating voltage range
10.8 V dc to 31.2 V dc
