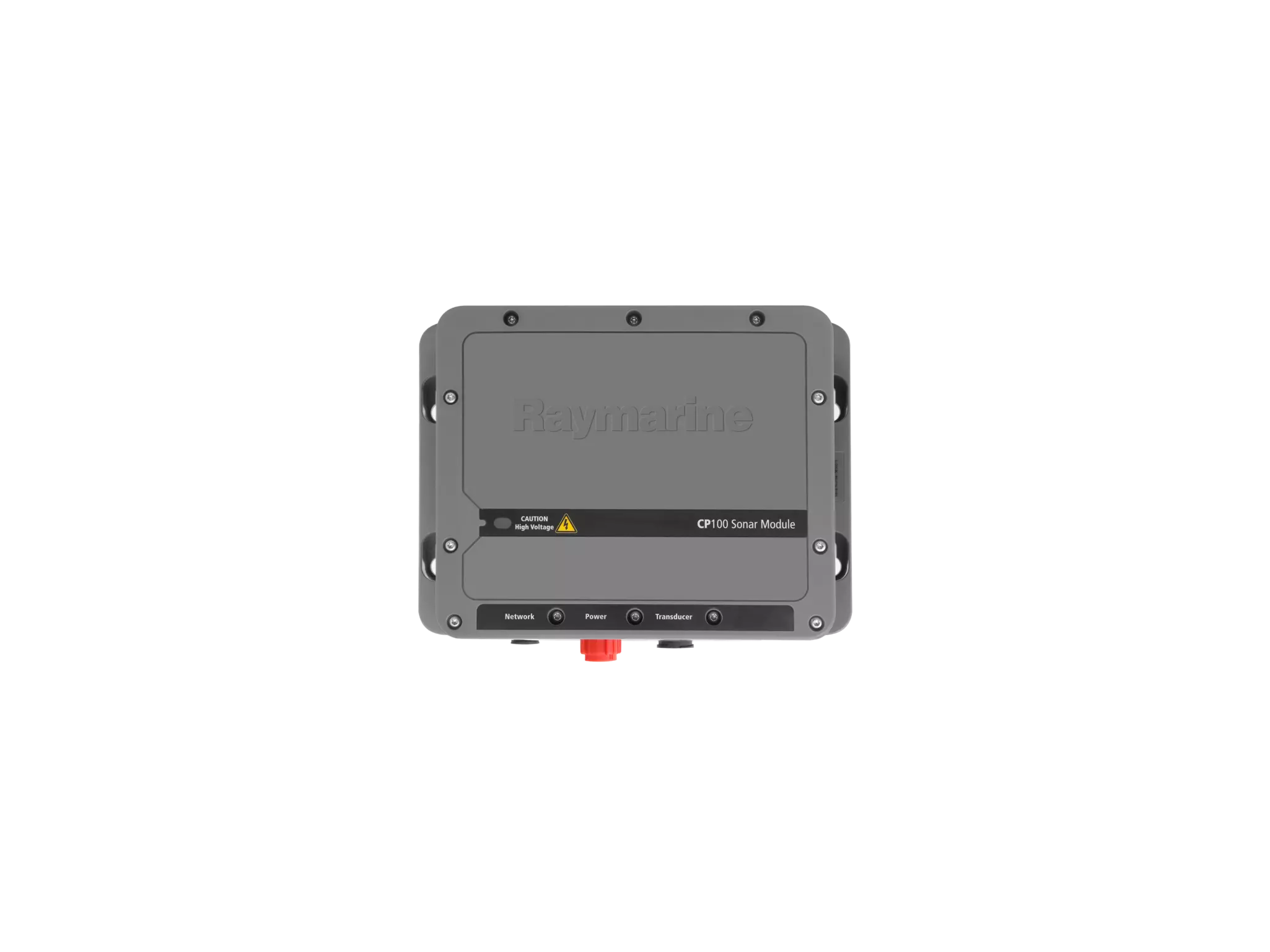

CP100
OEM: E70204
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70204"
Product Details (15)
Beam coverage
CHIRP sonar: conical beam, DownVision: wide (port / starboard) and thin (fore / aft)
Channels
CHIRP conical sonar, DownVision
Depth range
0.6 m (2 ft) to 183 m (600 ft) Depending on water conditions
Relative humidity
Up to 95%
Waterproof rating
IPx6, IPx7
Storage temperature
-30°C to +70°C (-22°F to 158°F)
Operating temperature
0°C to 55°C (32°F to 131°F)
Dimensions
Height: 162 mm (6.4 in), Width: 225 mm (8.9 in), Depth: 72 mm (2.8 in)
Weight
0.6 kg (1.32 lbs)
Standards
EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2
Power consumption
5.6 W (maximum)
Fuse rating
5 A
Nominal supply voltage
12 V dc / 24 V dc
Operating voltage range
10.8 V dc to 31.2 V dc
Current
1 A peak
