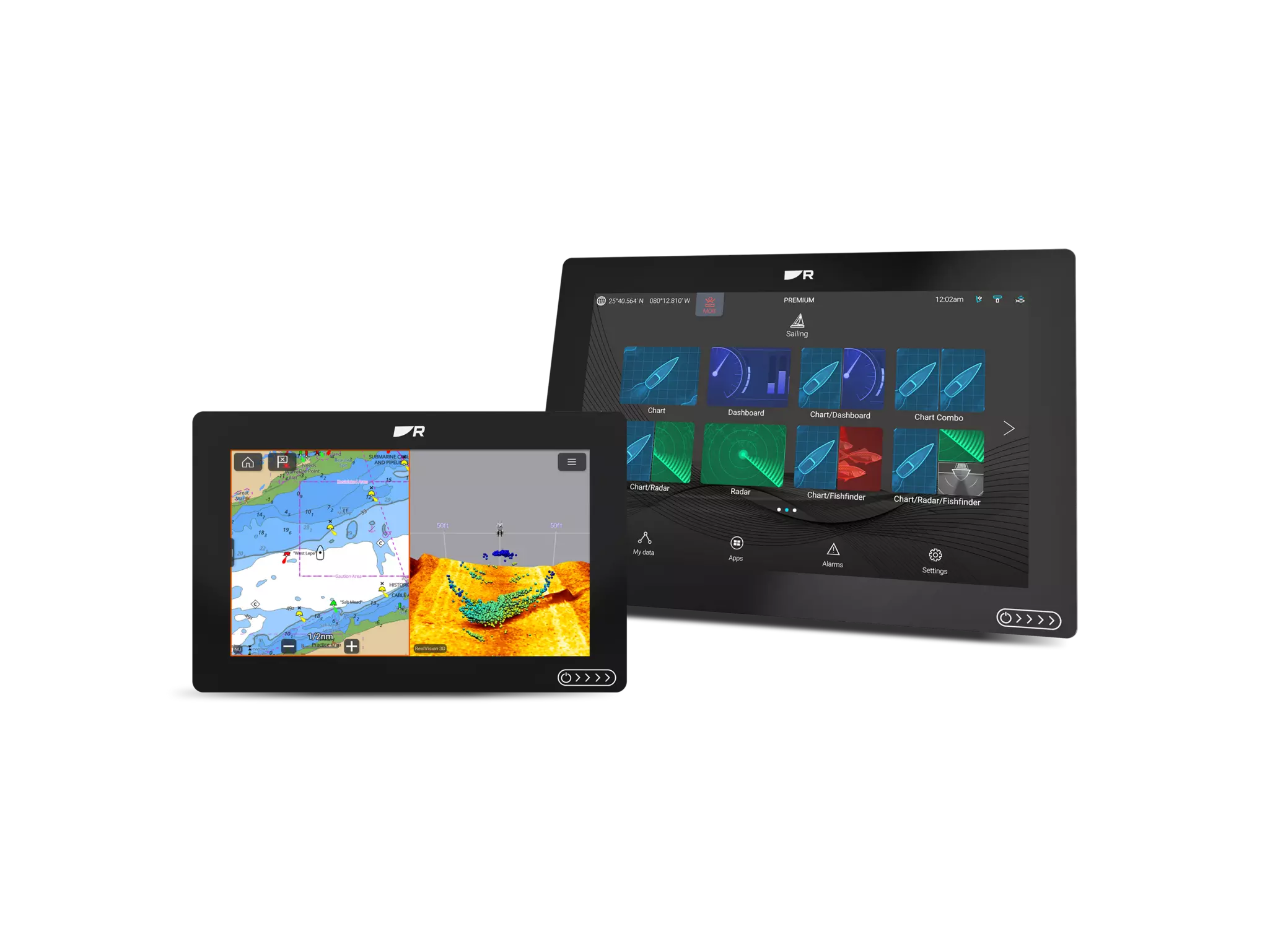

Axiom+ RV
OEM: E70635
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70635"
Product Details (58)
Dimensions (Trunnion mounted)
Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)
Dimensions (Trunnion mount)
Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)
Dimensions (Surface/Flush mounted)
Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)
Dimensions (surface mount)
Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)
Accessory connection
USB Micro B
Weight (display only)
Element 7: 1.0 Kg (2.2lbs)Element 9: 1.3 Kg (2.86lbs)Element 12: 2.0 Kg (4.4lbs)
Ethernet connection
RayNet (10/100 Mbits/s)
Size (diagonal):
Element 7: 7.0"Element 9: 9.0"Element 12: 12.1"
External storage
MicroSDXC card slot x 1
NMEA 2000 connection
DeviceNet (male connector built into power cable)
Ratio
Element 7: 5:3Element 9: 5:3Element 12: 8:5
Wireless connections
Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
Viewing angle (T / B / L / R):
Element 7: 50° / 60° / 70° / 70°Element 9: 50° / 70° / 70° / 70°Element 12: 89° / 89° / 89° / 89°
Internal storage
16 GB Solid State (14 GB usable)
Transducer connection
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers
Size (diagonal)
Axiom+ 7: 7"Axiom+ 9: 9"Axiom+ 12: 12"
Maximum Illumination
1500 nits / 1500 cd/m2
Resolution
Axiom+ 7: WSVGA 1024 x 600Axiom+ 9: Widescreen HD 1280 x 720Axiom+ 12: WXGA 1280 x 800
Viewing angle
Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85°Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85°Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88°
Power consumption (Approximate @ 12 V dc)
Element 7: 15 WattsElement 9: 20 WattsElement 12: 25 Watts
Illumination
Axiom+ 7: 1800 nits / 1800 cd/m2Axiom+ 9:1500 nits / 1500 cd/m2Axiom+ 12: 1800 nits / 1800 cd/m2
Protective coating
HydroToughTM Oleophobic
Fuse requirements
Inline fuse = 5 A, Thermal breaker = 3 A
Type
IPS (In-Plane Switching)
Color depth
24-bit
SeaTalkng / NMEA 2000
1 x DeviceNet female connector built into power cable
Number of simultaneous touches
2
2.4 GHz Wi-Fi
1 x 802.11/b/g/n
Power consumption
Axiom+ 7: 9.84 WAxiom+ 9: 11.98 WAxiom+ 12: 18.96 W
Transducer
1 x 15-pin connector
Operating voltage range
8 V dc to 16 V dc
External
1 x MicroSDXC card slot
Fuse rating
7 A
Operating temperature range
-25°C (-13°F) to +55°C (+131°F)
Nominal supply voltage
12 V dc
Storage temperature range
-30°C (-22°F) to +70°C (+158°F)
LEN (NMEA 2000 Load Equivalency Number)
1
Humidity
up to 93% @ 40°C (+104°F)
Depth range
CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft)
Operating temperature
-25°C to +55°C (-13°F to 131°F)
Storage temperature
-30°C to +70°C (-22°F to 158°F)
Relative humidity
Up to 93% @ 40°C (104°F)
Waterproof rating
IPx6, IPx7
Position Accuracy
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum
WGS-84 (alternatives can be selected on the MFD)
SBAS compatibility
EGNOS, GAGAN, MSAS, QZSS, WAAS
Satellite Differential Type (SBAS)
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels
Track up to 28 satellites simultaneously
Antenna
Internal - Ceramic chip mounted near top of unit
GNSS compatibility
GPS, GLONASS, Beidou
Almanac Update
Automatic
Cold start
< 2 minutes
Signal Acquisition
Automatic
Standards
EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15
Receiver IC Sensitivity
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency
1574 MHz to 1605 MHz
Refresh rate
10 Hz (10 times per second)
Time to first fix from cold start
< 2 minutes
