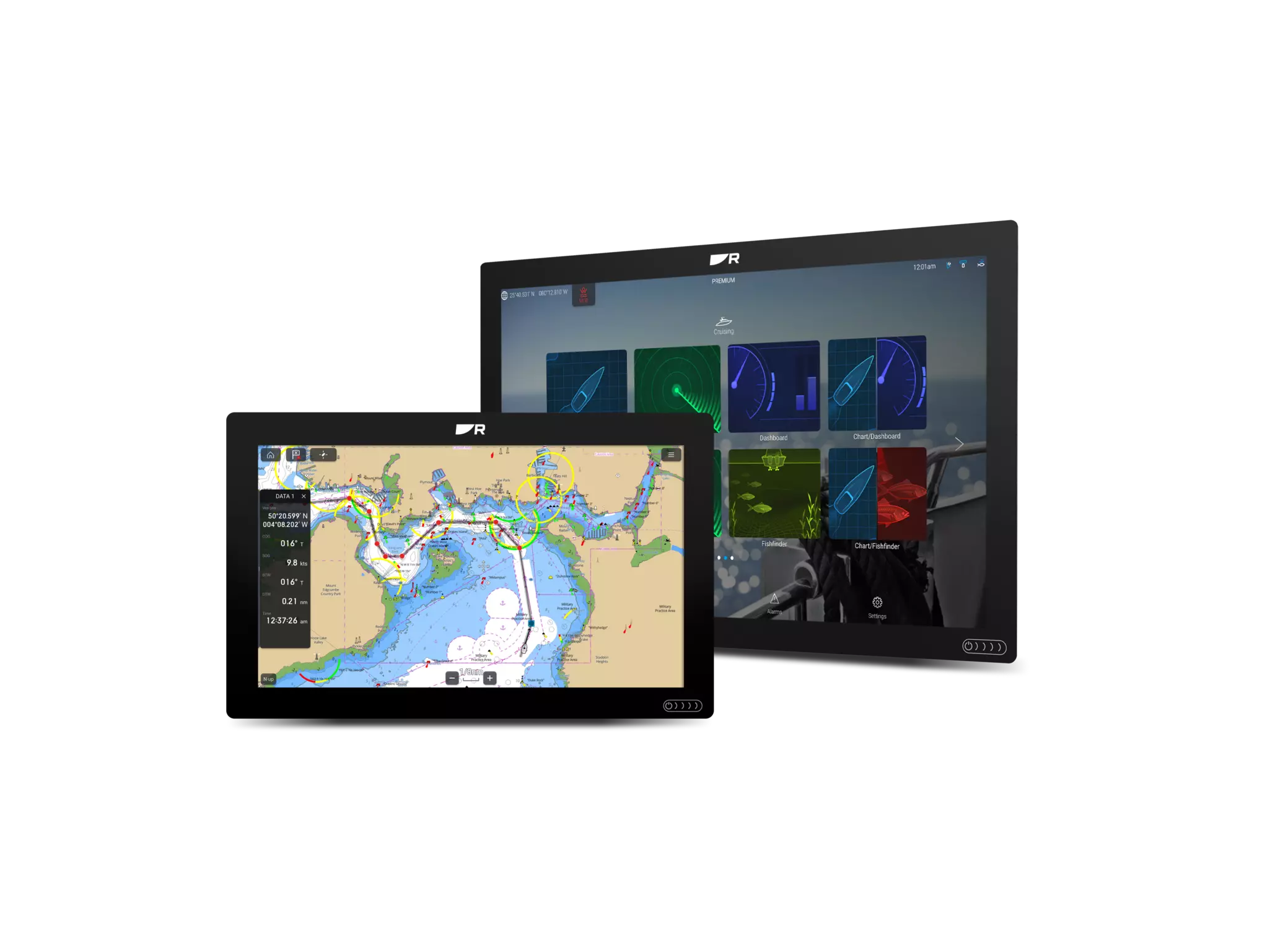

Axiom 2 XL 16
OEM: E70661
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70661"
Product Details (76)
Dimensions (Trunnion mounted)
Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)
Dimensions
Axiom 2 XL 16: Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in)Axiom 2 XL 19: Height: 289.44 mm (11.40 in), Width, 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in)Axiom 2 XL 22: Height: 326.33 mm (12.85 in), Width, 533.56 mm (21.00 in), Depth (including cables): 180.75 mm (7.12 in)Axiom 2 XL 24: Height: 386.84 mm (15.23 in), Width, 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in)
Dimensions (Trunnion mount)
Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)
Dimensions (Surface/Flush mounted)
Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)
Weight
Axiom XL 16: 5.9 kg (13 lbs)Axiom XL 19: 7.6 kg (16.76 lbs)Axiom XL 22: 9.9 kg (21.83 lbs)Axiom XL 24: 11.3 kg (24.9 lbs)
Dimensions (surface mount)
Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)
USB connection
USB-A: Touch input, USB-B: Touch output
Weight (display only)
Element 7: 1.0 Kg (2.2lbs)Element 9: 1.3 Kg (2.86lbs)Element 12: 2.0 Kg (4.4lbs)
Accessory connection
USB Micro B
Size (diagonal):
Element 7: 7.0"Element 9: 9.0"Element 12: 12.1"
GPS antenna connection
TNC type connector
External storage
Remote card reader required
Ethernet connection
PoE RayNet (10/100/1,000 Mbits/s) x 3
Viewing angle (T / B / L / R):
Element 7: 50° / 60° / 70° / 70°Element 9: 50° / 70° / 70° / 70°Element 12: 89° / 89° / 89° / 89°
HDMI connections
HDMI in, HDMI out
Transducer connection
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers
Audio output
Left and Right RCA connectors via Power/Video/Audio cable.
Analog video connections
Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)
Maximum Illumination
1500 nits / 1500 cd/m2
NMEA 0183 Support
Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721)
NMEA 2000 connection
DeviceNet connector
Power consumption (Approximate @ 12 V dc)
Element 7: 15 WattsElement 9: 20 WattsElement 12: 25 Watts
Wireless connections
Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n
Protective coating
HydroToughTM Oleophobic
External alarm connection
Bare-ended wires x 2
Fuse requirements
Inline fuse = 5 A, Thermal breaker = 3 A
Internal storage
64 GB Solid State
Power consumption @ 12 V dc
Axiom 2 XL 16: 76.56 WAxiom 2 XL 19: 85.42 WAxiom 2 XL 22: 94.25 WAxiom 2 XL 24: 92.5 W
SeaTalkng / NMEA 2000
1 x DeviceNet female connector built into power cable
Power consumption @ 24 V dc
Axiom 2 XL 16: 71.53 WAxiom 2 XL 19: 73.98 WAxiom 2 XL 22: 79.46 WAxiom 2 XL 24: 77.96 W
2.4 GHz Wi-Fi
1 x 802.11/b/g/n
Power consumption
Axiom+ 7: 9.84 WAxiom+ 9: 11.98 WAxiom+ 12: 18.96 W
Off current @ 12 V dc
PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W)
Transducer
1 x 15-pin connector
Off current @ 24 V dc
PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W)
External
1 x MicroSDXC card slot
PoE operating voltage range
9.5 V dc to 32 V dc
Operating temperature range
-25°C (-13°F) to +55°C (+131°F)
Current
Axiom 2 XL 16: 8.56 AAxiom 2 XL 19: 8.98 AAxiom 2 XL 22: 10.12 AAxiom 2 XL 24: 10.03 A
Storage temperature range
-30°C (-22°F) to +70°C (+158°F)
Operating voltage range
8 V dc to 32 V dc
Humidity
up to 93% @ 40°C (+104°F)
Depth range
CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft)
Fuse rating
15 A
Nominal supply voltage
12 V dc / 24 V dc
Position Accuracy
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
LEN (NMEA 2000 Load Equivalency Number)
1
Geodetic Datum
WGS-84 (alternatives can be selected on the MFD)
Resolution
Axiom 2 XL 16: 1920 x 1080 pixelsAxiom 2 XL 19: 1920 x 1080 pixelsAxiom 2 XL 22: 1920 x 1080 pixelsAxiom 2 XL 24: 1920 x 1200 WUXGA
Channels
Multiple - ability to simultaneously track up to 28 satellites
Size (diagonal)
Axiom 2 XL 16: 15.6"Axiom 2 XL 19: 18.5"Axiom 2 XL 22: 21.5"Axiom 2 XL 24: 24"
Antenna
Internal - Ceramic chip mounted near top of unit
Illumination
Axiom XL 16: 1300 nits / 1300 cd/m2Axiom XL 19: 1200 nits / 1200 cd/m2Axiom XL 22: 1275 nits / 1275 cd/m2Axiom XL 24: 1300 nits / 1300 cd/m2
GNSS compatibility
GPS, GLONASS, Beidou
Viewing angle
Axiom 2 XL 16: Top 88° / Bottom 88° / Left 88° / Right 88°Axiom 2 XL 19: Top 88° / Bottom 88° / Left 88° / Right 88°Axiom 2 XL 22: Top 89° / Bottom 89° / Left 89° / Right 89°Axiom 2 XL 24: Top 89° / Bottom 89° / Left 89° / Right 89°
SBAS compatibility
EGNOS, GAGAN, MSAS, QZSS, WAAS
Satellite Differential Type (SBAS)
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Ratio
Axiom 2 XL 16: 16:9Axiom 2 XL 19: 16:9Axiom 2 XL 22: 16:9Axiom 2 XL 24: 16:10
Signal Acquisition
Automatic
Type
IPS (In-Plane Switching)
Almanac Update
Automatic
Color depth
24-bit
Receiver IC Sensitivity
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Number of simultaneous touches
2
Operating frequency
1574 MHz to 1605 MHz
Operating temperature
-25°C to +55°C (-13°F to 131°F)
Cold start
< 2 minutes
Storage temperature
-30°C to +70°C (-22°F to 158°F)
Standards
EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15
Relative humidity
up to 93% @ 40°C (104°F)
Waterproof rating
IPx6, IPx7
Refresh rate
10 Hz (10 times per second)
Variant - screenize
16"
_variant_image_url
https://d73v3rdaoqh96.cloudfront.net/image/308061165312/image_5l3ebl3mn10er1lecjksb8s96i/-FWEBP-S576
Time to first fix from cold start
< 2 minutes
