Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)

Dimensions (Trunnion mounted)

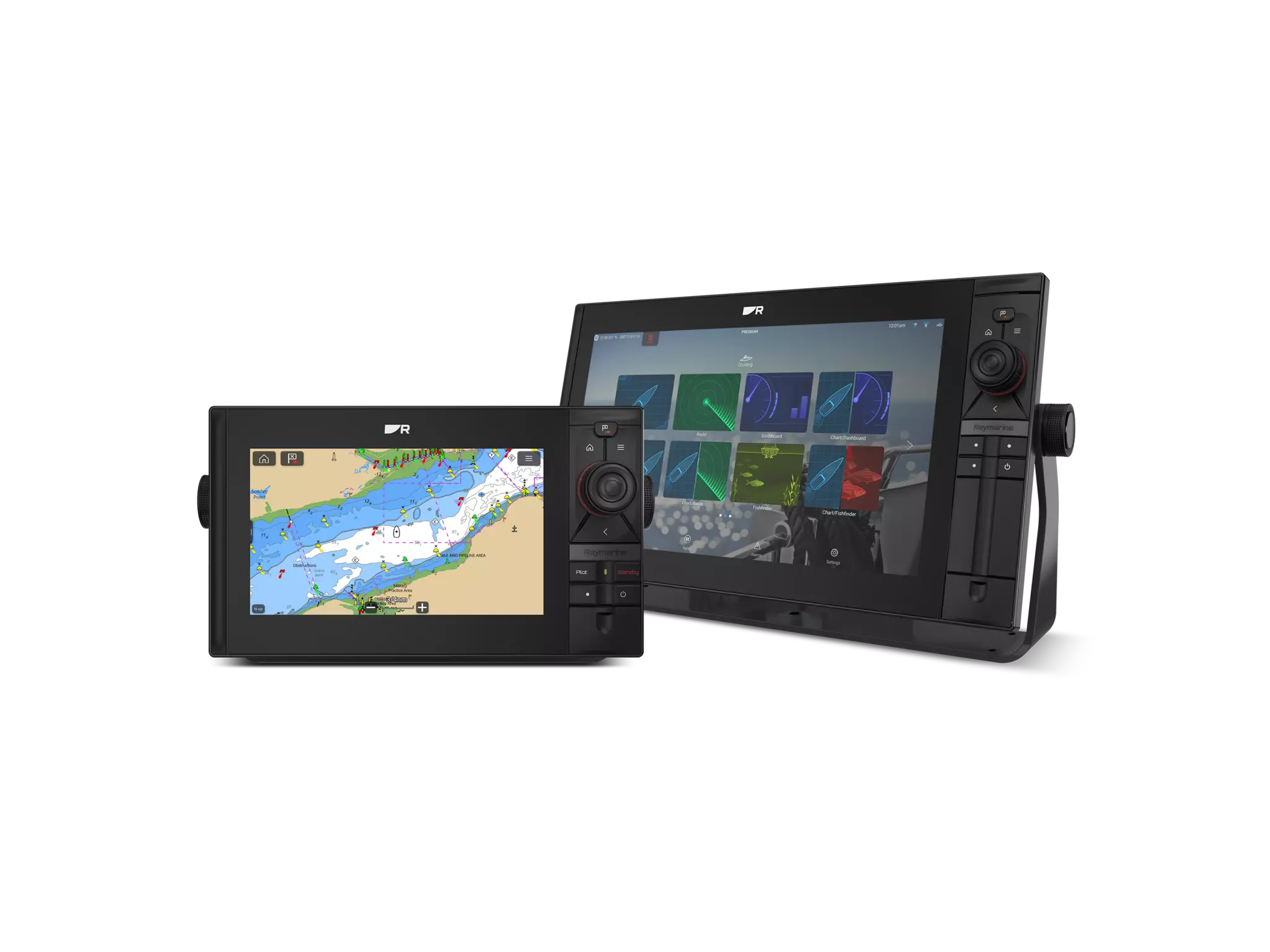

Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)Axiom 2 Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in)

Dimensions (surface mount)

Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)

Dimensions (Surface/Flush mounted)

Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)

Weight (display only)

Element 7: 1.0 Kg (2.2lbs)Element 9: 1.3 Kg (2.86lbs)Element 12: 2.0 Kg (4.4lbs)

Ethernet connection

2 RayNet (10/100/1,000 Mbits/s) ports

Size (diagonal):

Element 7: 7.0"Element 9: 9.0"Element 12: 12.1"

NMEA 2000 connection

DeviceNet connector

Wi-Fi

Multiband - 2.4GHz, and 5Ghz 802.11b/g/n

Bluetooth

v4.0

Viewing angle (T / B / L / R):

Element 7: 50° / 60° / 70° / 70°Element 9: 50° / 70° / 70° / 70°Element 12: 89° / 89° / 89° / 89°

Accessory connection

USB Micro B

Internal storage

64GB Solid State

External storage

2 front mounted MicroSDXC card slots

Maximum Illumination

1500 nits / 1500 cd/m2

Digital Video and Audio

HDMI Out Micro connector type D

Analog video connections

BNC Analog video input (on power cable)

Power consumption (Approximate @ 12 V dc)

Element 7: 15 WattsElement 9: 20 WattsElement 12: 25 Watts

Analog audio connections

RCA connectors via power cable

External GPS anternna

TNC connector

Fuse requirements

Inline fuse = 5 A, Thermal breaker = 3 A

Power consumption @ 12 V dc

Axiom Pro 9: 33.12 WAxiom Pro 12: 29.88 WAxiom Pro 16: 42.36 W

Power consumption @ 24 V dc

Axiom Pro 9: 30.96 WAxiom Pro 12: 28.8 WAxiom Pro 16: 40.8 W

SeaTalkng / NMEA 2000

1 x DeviceNet female connector built into power cable

Operating voltage range

8 V dc to 32 V dc

2.4 GHz Wi-Fi

1 x 802.11/b/g/n

Nominal supply voltage

12 V dc / 24 V dc

Transducer

1 x 15-pin connector

Off current @ 12 V dc

11 mA (0.13 W)

External

1 x MicroSDXC card slot

Off current @ 24 V dc

18 mA (0.43 W)

Operating temperature range

-25°C (-13°F) to +55°C (+131°F)

LEN (NMEA 2000 Load Equivalency Number)

Storage temperature range

-30°C (-22°F) to +70°C (+158°F)

Current

5 A

Humidity

up to 93% @ 40°C (+104°F)

Fuse rating

15 A

Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time

Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)

Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)

Channels

CHIRP conical sonar

Antenna

Internal - Ceramic chip mounted near top of unit

GNSS compatibility

GPS, Galileo, GLONASS, Beidou

SBAS compatibility

EGNOS, GAGAN, MSAS, QZSS, WAAS

Almanac Update

Automatic

Signal Acquisition

Automatic

Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)

Operating frequency

1574 MHz to 1605 MHz

Refresh rate

10 Hz (10 times per second)

Cold start

< 2 minutes

Time to first fix from cold start

< 2 minutes

Standards

EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15

Operating temperature

-25°C to +55°C (-13°F to 131°F)

Storage temperature

-30°C to +70°C (-22°F to 158°F)

Relative humidity

Up to 93% @ 40°C (104°F)

Waterproof rating

IPx6, IPx7

Size (diagonal)

Axiom 2 Pro 9: 9.0"Axiom 2 Pro 12: 12.1"Axiom 2 Pro 16: 15.6"

Ratio

Axiom 2 Pro 9: 16:9Axiom 2 Pro 12: 16:9Axiom 2 Pro 16: 16:10

Resolution

Axiom 2 Pro 9: 1280 x 720 HDAxiom 2 Pro 12: 1280 x 800 WXGAAxiom 2 Pro 16: 1920 x 1080 FHD

Viewing angle

Top 88° / Bottom 88° / Left 88° / Right 88°

Type

IPS (In-Plane Switching)

Color depth

24-bit

Illumination

Axiom 2 Pro 9 1300 nits / 1300 cd/m2Axiom 2 Pro 12 1200 nits / 1200 cd/m2Axiom 2 Pro 16 1200 nits / 1200 cd/m2

Number of simultaneous touches

1 to 16

Depth range

0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions

Transducer connection

25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers
