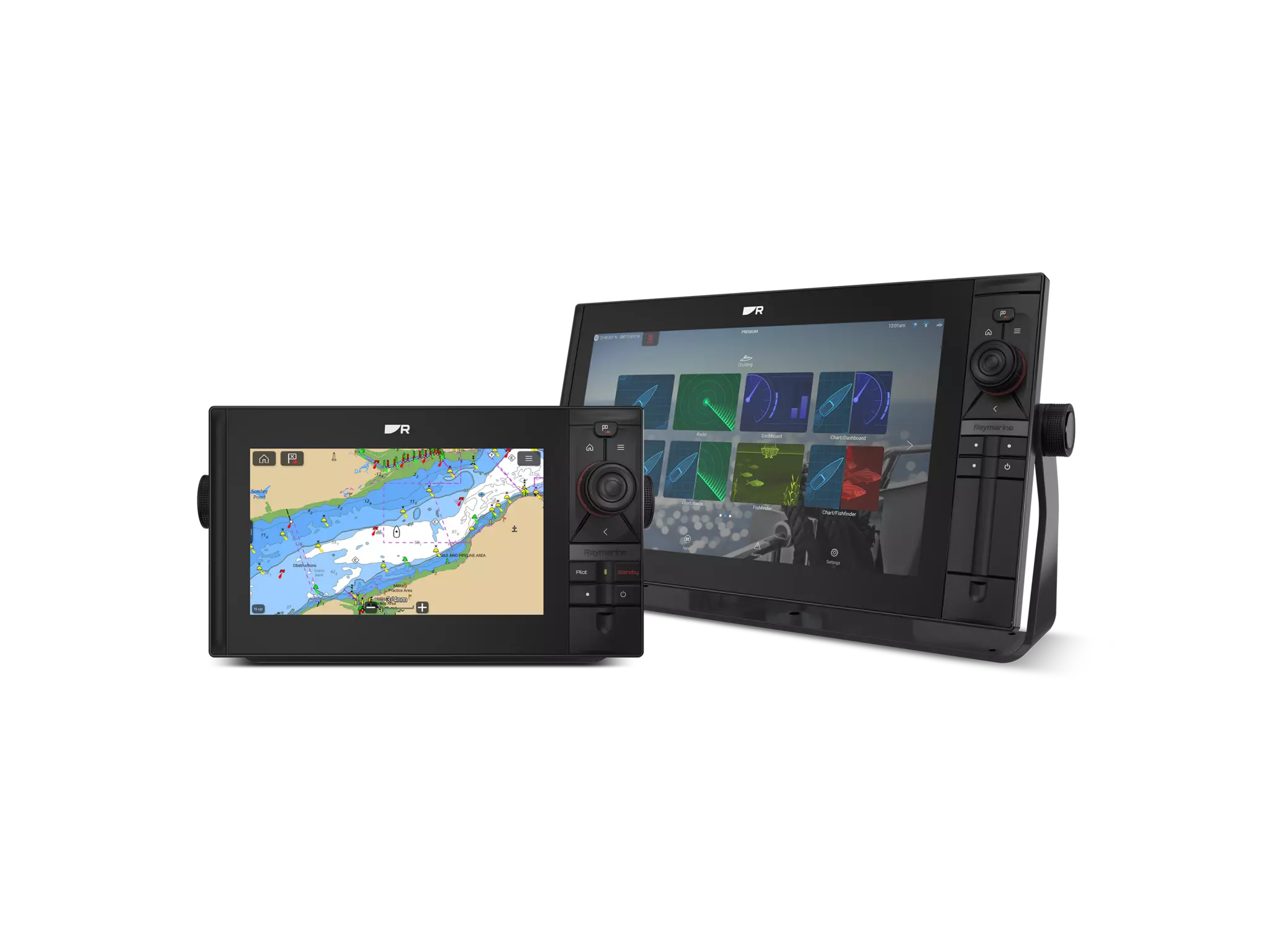

Axiom 2 Pro 12 S
OEM: E70655
View on Raymarine ↗
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70655"
Product Details (51)
Dimensions (Trunnion mounted)
Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)Axiom 2 Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in)
Dimensions (Surface/Flush mounted)
Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)
Ethernet connection
2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 2000 connection
DeviceNet connector
Wi-Fi
Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
Bluetooth
v4.0
Accessory connection
USB Micro B
Internal storage
64GB Solid State
External storage
2 front mounted MicroSDXC card slots
Digital Video and Audio
HDMI Out Micro connector type D
Analog video connections
BNC Analog video input (on power cable)
Analog audio connections
RCA connectors via power cable
External GPS anternna
TNC connector
Power consumption @ 12 V dc
Axiom Pro 9: 33.12 WAxiom Pro 12: 29.88 WAxiom Pro 16: 42.36 W
Power consumption @ 24 V dc
Axiom Pro 9: 30.96 WAxiom Pro 12: 28.8 WAxiom Pro 16: 40.8 W
Operating voltage range
8 V dc to 32 V dc
Nominal supply voltage
12 V dc / 24 V dc
Off current @ 12 V dc
11 mA (0.13 W)
Off current @ 24 V dc
18 mA (0.43 W)
LEN (NMEA 2000 Load Equivalency Number)
1
Current
5 A
Fuse rating
15 A
Position Accuracy
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum
WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels
CHIRP conical sonar
Antenna
Internal - Ceramic chip mounted near top of unit
GNSS compatibility
GPS, Galileo, GLONASS, Beidou
Almanac Update
Automatic
Signal Acquisition
Automatic
Receiver IC Sensitivity
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency
1574 MHz to 1605 MHz
Refresh rate
10 Hz (10 times per second)
Time to first fix from cold start
< 2 minutes
Operating temperature
-25°C to +55°C (-13°F to 131°F)
Storage temperature
-30°C to +70°C (-22°F to 158°F)
Relative humidity
Up to 93% @ 40°C (104°F)
Waterproof rating
IPx6, IPx7
Size (diagonal)
Axiom 2 Pro 9: 9.0"Axiom 2 Pro 12: 12.1"Axiom 2 Pro 16: 15.6"
Ratio
Axiom 2 Pro 9: 16:9Axiom 2 Pro 12: 16:9Axiom 2 Pro 16: 16:10
Resolution
Axiom 2 Pro 9: 1280 x 720 HDAxiom 2 Pro 12: 1280 x 800 WXGAAxiom 2 Pro 16: 1920 x 1080 FHD
Viewing angle
Top 88° / Bottom 88° / Left 88° / Right 88°
Type
IPS (In-Plane Switching)
Color depth
24-bit
Illumination
Axiom 2 Pro 9 1300 nits / 1300 cd/m2Axiom 2 Pro 12 1200 nits / 1200 cd/m2Axiom 2 Pro 16 1200 nits / 1200 cd/m2
Number of simultaneous touches
1 to 16
Depth range
0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions
Transducer connection
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers
