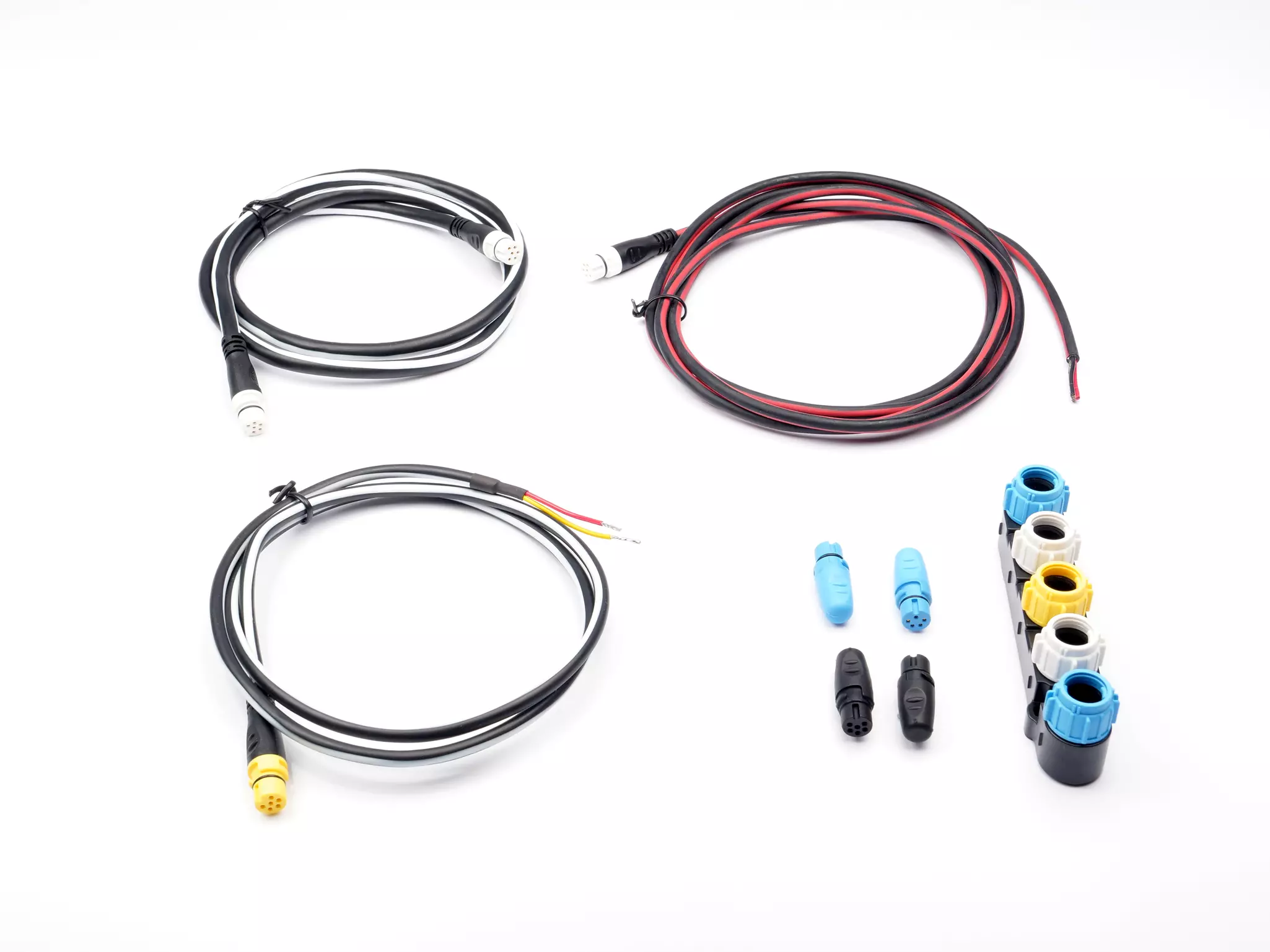

SeaTalk NG to VHF NMEA 0183 Converter Kit
OEM: E70196
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70196"
Product Details (11)
Relative humidity
Up to 95%
Waterproof rating
IPx6
Storage temperature
-20°C to +65°C (-4°F to 149°F)
Operating temperature
-10°C to +50°C (14°F to 122°F)
Connections
SeaTalkng backbone x 2, SeaTalkng spur x 2, NMEA 0183 spur x 1
Dimensions
Height: 30.2 mm (1.19 in), Width: 109.45 mm (4.3 in), Depth: 21.45 mm (0.84 in)
Current
Peak operating current: 50 mA, Peak supply current: 950 mA
Operating voltage range
9 V dc to 16 V dc
Nominal supply voltage
12 V dc
LEN (NMEA 2000 Load Equivalency Number)
1
Standards
EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2
