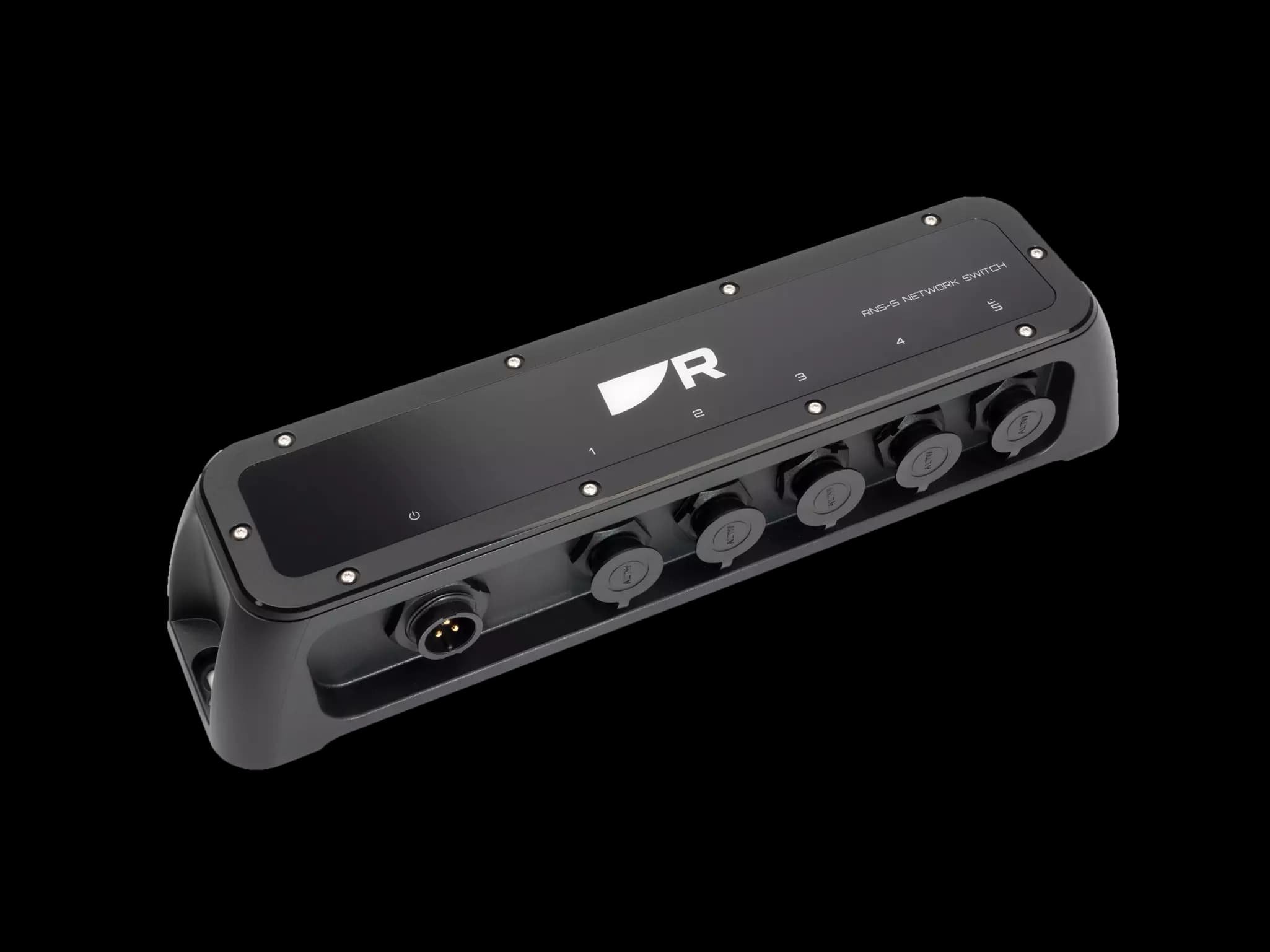

RNS-5
OEM: A80731
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine A80731"
Product Details (19)
Relative Humidity
up to 93% @ 40 °C (104 °F)
Waterproof rating
IPx6, IPx7
Non-operating temperature
-30 °C (-22 °F) to +70 °C (158 °F)
Storage temperature
-25 °C to +70 °C (-13 °F to 158 °F)
Operating temperature
-25 °C to +55 °C (-13 °F to 131 °F)
Product markings
UKCA, CE, Australian Tick, WEEE Directive
Standards
EN 60945:2002 (Europe, Australia New Zealand), EN ISO 8846:2017, ICES-003 (Canada), CFR47 Part 15 (USA), IACS section E10 (Japan / China), EMC Directive 2014/30/EU
Dimensions
Length: 286 mm (11.26 in), Width: 72.6 mm (2.86 in), Height: 55.5 mm (2.19 in)
Port separation distance
16.7 mm (0.65 in)
Weight
0.36 kg (0.79 lbs)
IEEE Standard
Conforms to IEEE 802.3at
Network connection ports
5x waterproof RayNet connection ports (10/100/1000 Mbits/s)
Ethernet speed
10 / 100 / 1000 M/bits (Port 5 only)
Nominal supply voltage
12 V / 24 V dc
Operating voltage range
10.8 V to 31.2 V dc
Power consumption
3 W (Maximum) @ 12 V
Thermal breaker rating
3 A
Inline fuse rating
2 A
Current
< 600 mA (nominal) @ 12 V
