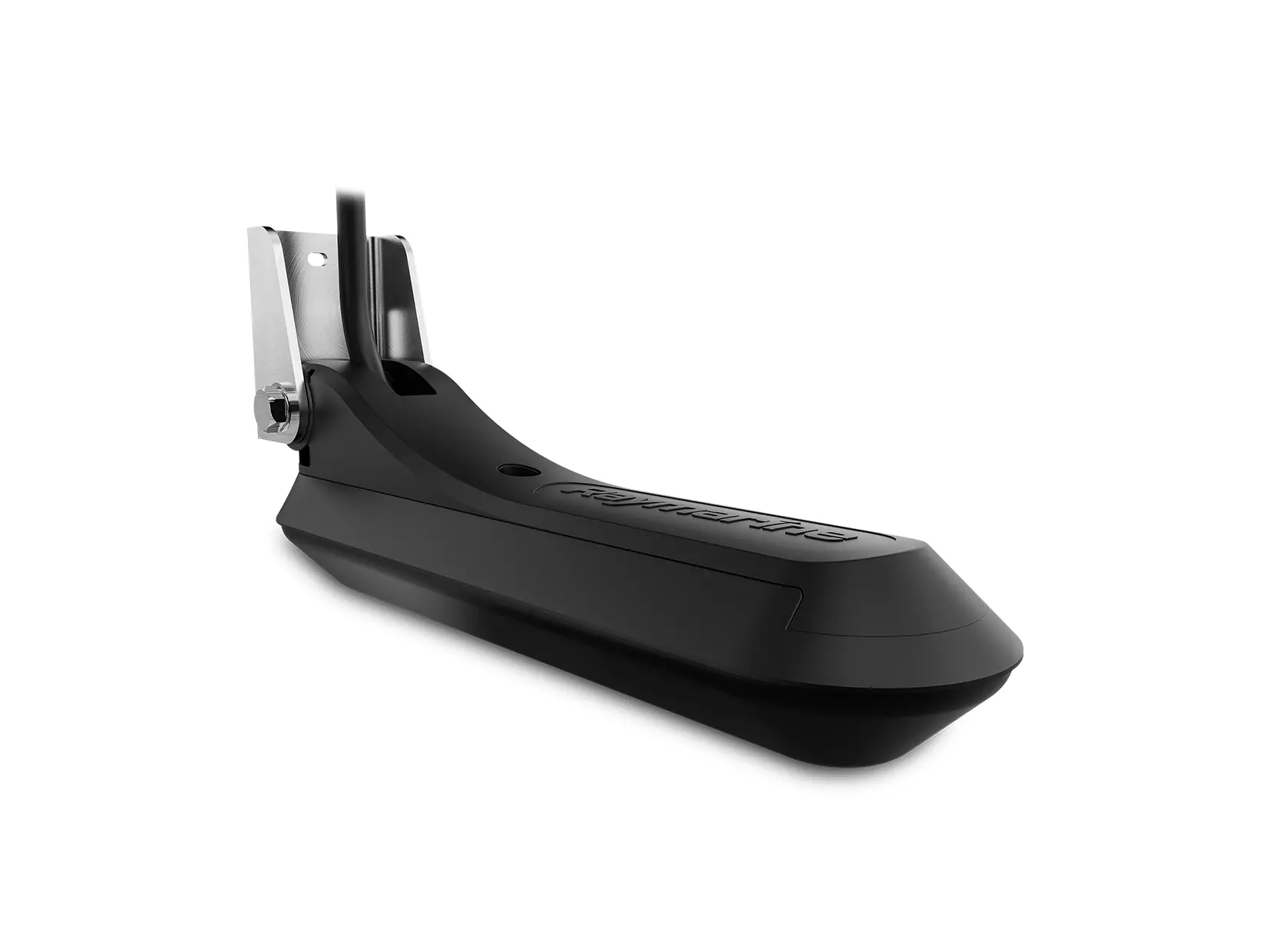

RVM-100 Transducer
OEM: A80703
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine A80703"
Product Details (11)
Sensors
Temperature sensor, AHRS (Attitude and Heading Reference System) sensor
Sonar channels
RealVision Max 3D, SideVision, DownVision, Conical High CHIRP 600 W @ 200 kHz
Beam width
200 kHz: 12°
Dimensions
Length: 256.6 mm (10.10 in), Height: 120.5 mm (4.74 in)
Cable length
8 m (26.2 ft)
Weight (including brackets)
0.647 kg (1.42 lb)
Waterproof rating
IPx6 (surfaces exterior to hull only), IPx7, IPx8
Storage temperature range
-20°C (23°F) to + 70°C (158°F)
Operating temperature range
-2°C (28.4°F) to + 55°C (131°F)
Standards
EN 60945:2002, IEC 28846:1993, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2
Sonar range
CHIRP sonar = 0.6 M (2 ft) to 365 m (1,200 ft), DownVision = 0.6 M (2 ft) to 182 m (600 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft), RealVision Max 3D = 0.6 M (2 ft) to 91 m (300 ft)
