Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)

Length

287.63 mm (11.32 in)

Dimensions (Trunnion mount)

Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)

Dimensions (Surface/Flush mounted)

Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)

Height

125.5 mm (4.94 in)

Dimensions (surface mount)

Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)

Accessory connection

USB Micro B

Depth

78 mm (3.07 in)

Weight (display only)

Element 7: 1.0 Kg (2.2lbs)Element 9: 1.3 Kg (2.86lbs)Element 12: 2.0 Kg (4.4lbs)

Ethernet connection

RayNet (10/100 Mbits/s)

Port separation distance

17.38 mm (0.68 in)

Size (diagonal):

Element 7: 7.0"Element 9: 9.0"Element 12: 12.1"

External storage

MicroSDXC card slot x 1

Weight

960.5 g (2.12 lbs)

Resolution

Element 7: WVGA 800 x 480Element 9: WVGA 800 x 480Element 12: WXGA 1280 x 800

NMEA 2000 connection

DeviceNet (male connector built into power cable)

Nominal supply voltage

12 V or 24 V dc

Ratio

Element 7: 5:3Element 9: 5:3Element 12: 8:5

Wireless connections

Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n

Operating voltage range

9 V to 31.2 V dc

Viewing angle (T / B / L / R):

Element 7: 50° / 60° / 70° / 70°Element 9: 50° / 70° / 70° / 70°Element 12: 89° / 89° / 89° / 89°

Internal storage

16 GB Solid State (14 GB usable)

PoE operating voltage range

10.8 V to 31.2 V dc

Type

Element 7: TN (Twisted Nematic)Element 9: TN (Twisted Nematic)Element 12: IPS (In-Plane Switching)

Transducer connection

25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers

Power consumption

160 W (Maximum) @ 12 V dc150 W (Maximum) @ 24 V dc

Color depth

24-bit

Size (diagonal)

Axiom+ 7: 7"Axiom+ 9: 9"Axiom+ 12: 12"

Current

13.3 A (Maximum) @ 12 V dc6.25 A (Maximum) @ 24 V dc

Maximum Illumination

1500 nits / 1500 cd/m2

Inline fuse rating

15 A @ 12 V dc8 A @ 24 V dc

Viewing angle

Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85°Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85°Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88°

Thermal breaker rating

20 A @ 12 V dc10 A @ 24 V dc

Power consumption (Approximate @ 12 V dc)

Element 7: 15 WattsElement 9: 20 WattsElement 12: 25 Watts

Illumination

Axiom+ 7: 1800 nits / 1800 cd/m2Axiom+ 9:1500 nits / 1500 cd/m2Axiom+ 12: 1800 nits / 1800 cd/m2

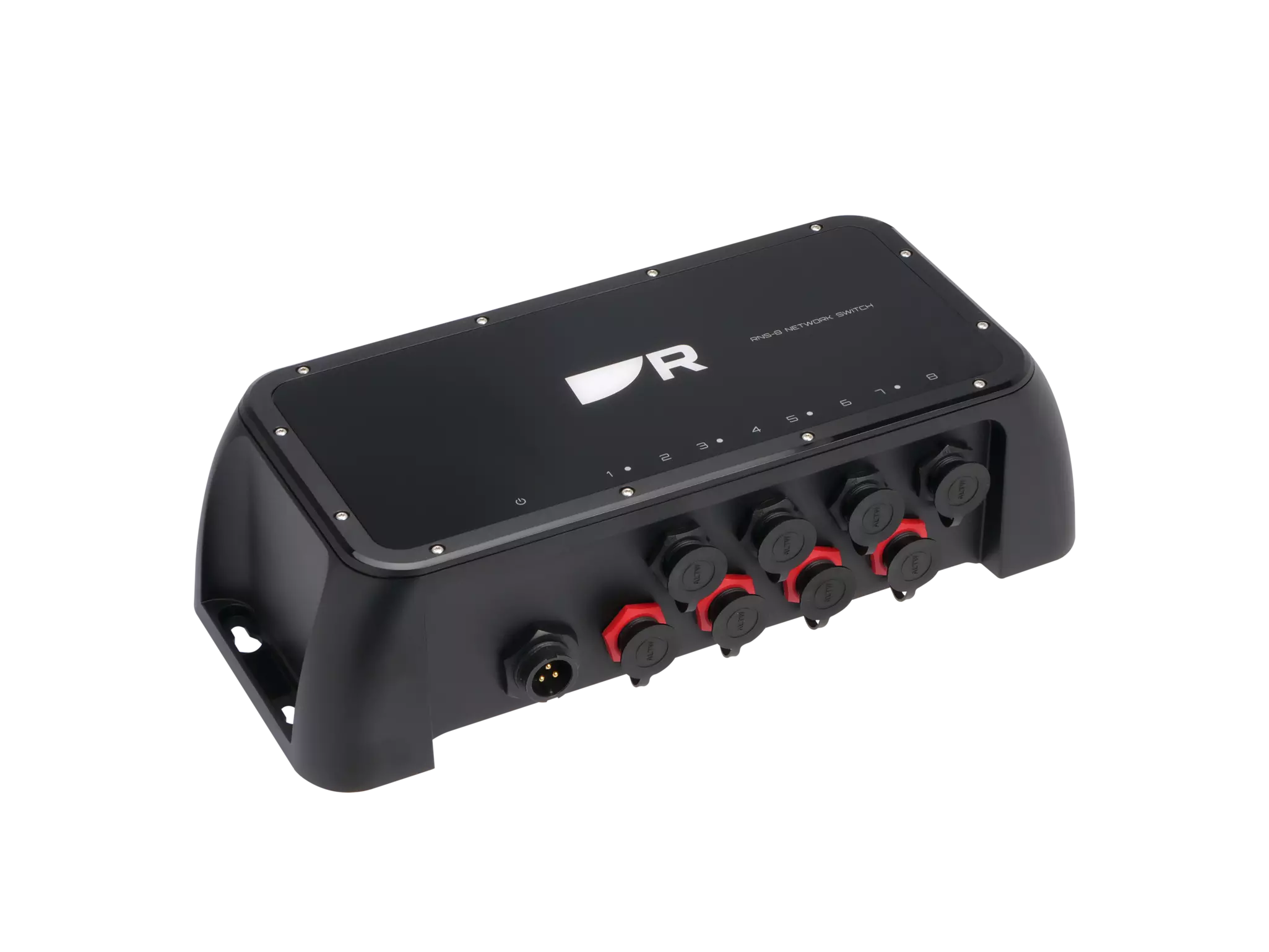

Network connection ports

4 x RayNet connection ports (10/100/1000 Mbits/s)4 x PoE RayNet connection ports (10/100/1000 Mbits/s). Each of the 4 ports supports PoE Classes 0 to 4, with 30 W maximum power available for each port.Note:You can mix a combination of PoE and non-PoE devices simultaneously, for a total of 8 devices (maximum PoE devices = 4; maximum non-PoE devices = 8).In order to sufficiently power PoE devices, the network switch’s power supply must exceed 10.8 V dc.

Protective coating

HydroToughTM Oleophobic

IEEE Standard

Conforms to IEEE 802.3at

Fuse requirements

Inline fuse = 5 A, Thermal breaker = 3 A

Operating temperature

–25 °C (–13 °F) to +55 °C (131 °F)

LEN (NMEA 2000 Load Equivalency Number)

1 (Based on 9 V dc nominal voltage)

Non-operating temperature

–30 °C (–22 °F) to +70 °C (158 °F)

SeaTalkng / NMEA 2000

1 x DeviceNet female connector built into power cable

Number of simultaneous touches

Relative humidity

up to 93% @ 40 °C (104 °F)

2.4 GHz Wi-Fi

1 x 802.11/b/g/n

Waterproof rating

IPx6 & IPx7

Transducer

1 x 15-pin HyperVision connector

Standards

EN 60945:2002 (Europe, Australia New Zealand)ICES-003 (Canada)CFR47 Part 15 (USA)IACS section E10 (Japan / China)

350 kHz (Standard) range

RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)

Fuse rating

7 A

Product markings

UKCACEAustralian TickWEEE Directive

1.2 MHz (Hyper) range

RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)

Sonar channels

Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)

200 kHz range

Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)

Depth range

CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft)

Frequencies

1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP

Power

1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W

Storage temperature

-30°C to +70°C (-22°F to 158°F)

External

1 x MicroSDXC card slot

Operating temperature range

-25°C (-13°F) to +55°C (+131°F)

Storage temperature range

-30°C (-22°F) to +70°C (+158°F)

Humidity

up to 93% @ 40°C (+104°F)

Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)

Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time

Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)

Channels

Multiple - ability to simultaneously track up to 28 satellites

Antenna

Internal - Ceramic chip mounted near top of unit

GNSS compatibility

GPS, GLONASS, Beidou

SBAS compatibility

EGNOS, GAGAN, MSAS, QZSS, WAAS

Signal Acquisition

Automatic

Almanac Update

Automatic

Refresh rate

10 Hz (10 times per second)

Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)

Time to first fix from cold start

< 2 minutes

Operating frequency

1574 MHz to 1605 MHz

Cold start

< 2 minutes
