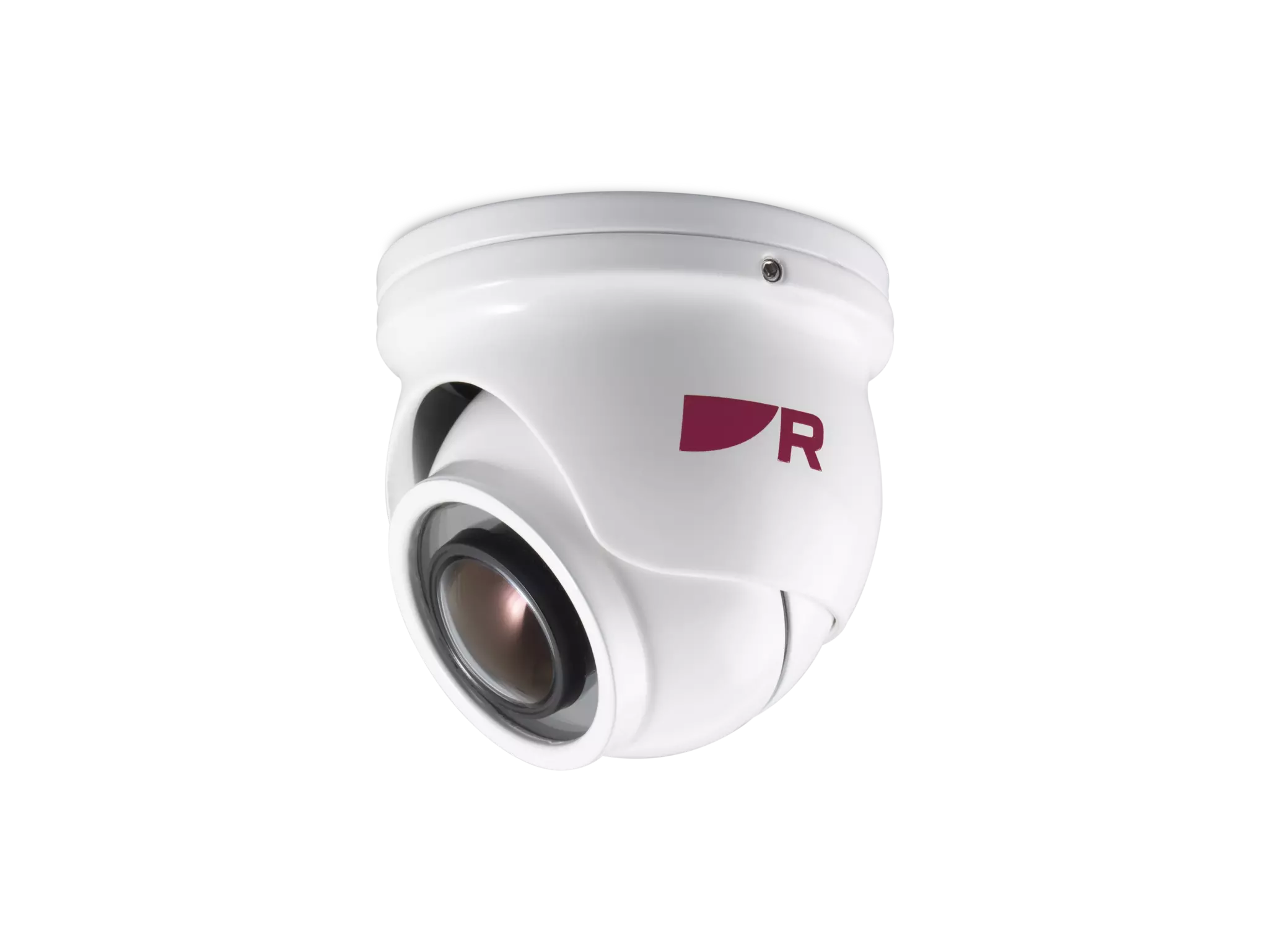

CAM300
OEM: E70660
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70660"
Product Details (25)
Product markings
UKCA, RoHS, CE, Australian RCM C-Tick
Standards
RoHS II 2011/65/EU, Japan / China: ABS/CCS IEC 60945:2002, Australia and New Zealand: C-Tick, Compliance Level 2, Canada: ICES-003 (exempt when factory installed in a transport vehicle), EMC Directive 2014/30/EU, Europe, UK, Australia, New Zealand: EN/IEC 60945:2002, FCC Part 15.19, FCC Part 15.105 (b), ISEDC ICES-003
Day / Night
True day / night operation with mechanical IR cutout filter
Automatic Gain Control
Supported / Multiple Levels
Scanning system
Progressive scan
Mirroring
Horizontal & Vertical
Video Processing
H.264 Codec / Dual Stream
Bit Rate Control
Capped Bit Rate / Variable Bit Rate
Compression
H.264
Illumination
6 x 850nm Infrared - 10 meter range
Frame Rate
25 fps
ONVIF version
21.06 master version
Sensor / DSP
1/4" CMOS Sensor
Field of View
1.8mm Standard (125° HFOV x 70° VFOV)
Power over Ethernet
PoE Class 1 (1.8 W Max) device (IEEE802.3af)
Nominal supply voltage
12 V dc
Operating voltage range
10.8 V dc to 15.6 V dc
Power consumption
1 W Nominal @ 12 V DC / 1.8 W Maximum (LEDs ON)
Current
< 150 mA (Maximum) @ 12 V dc
Relative humidity
Max. 85%
Waterproof rating
IP66
Storage temperature
-30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature
-20 °C to +65 °C (-4 °F to 149 °F)
Dimensions
Base diameter: 59.5 mm (2.34 in), Height: 52.9 mm (2.08 in)
Weight
0.420 kg (0.926 lbs)
