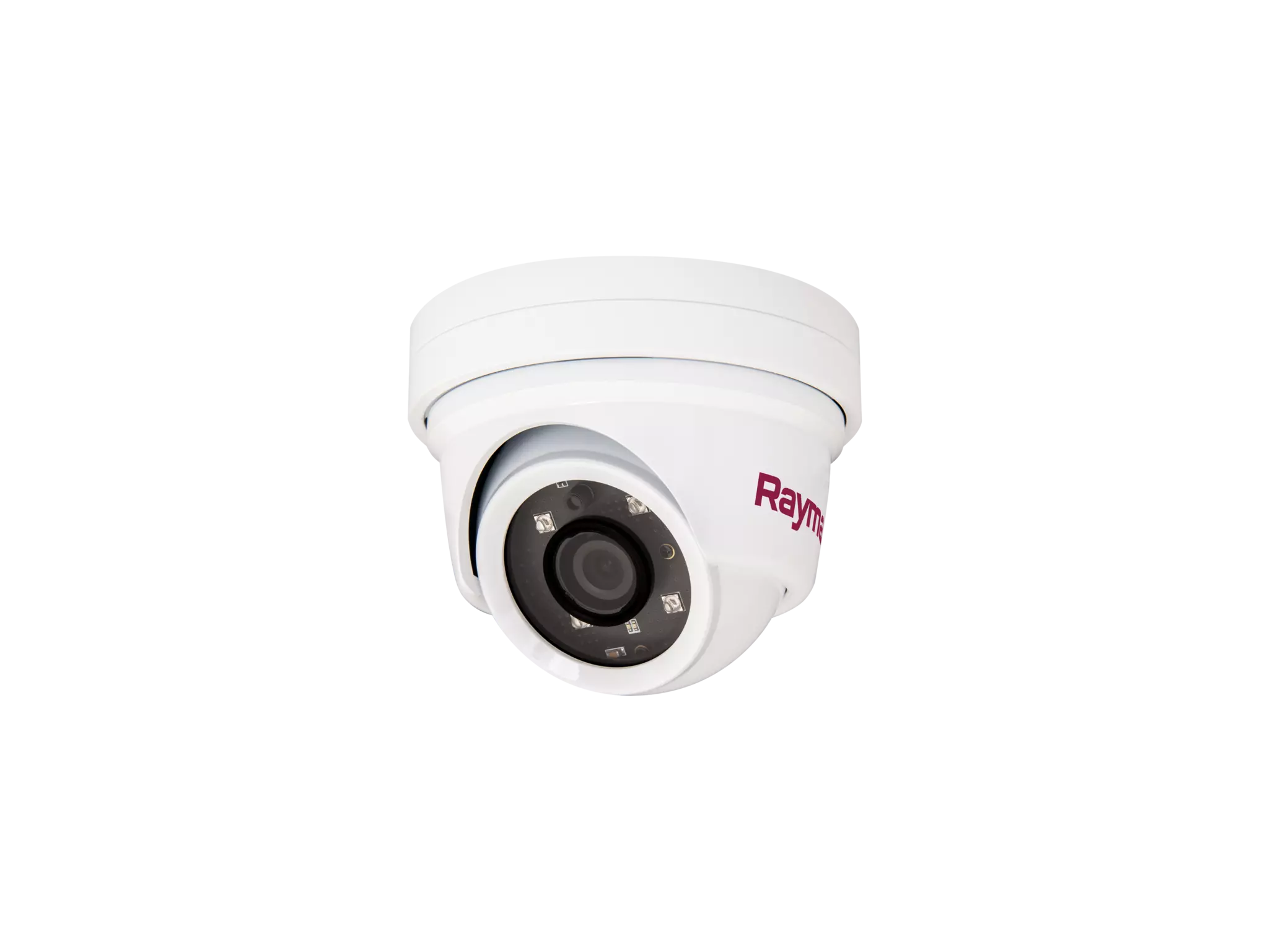

CAM220IP
OEM: E70347
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70347"
Product Details (26)
Dimensions
Base diameter:99.2 mm (3.9 in)Overall height:80.7 mm (3.2 in)
Weight
Boxed:0.65 kg (1.4 lbs)Unboxed:0.55 kg (1.2 lbs)
Nominal supply voltage
12 V dc
Operating voltage range
10.8 V to 13.2 V dc
Power consumption
5.4 W Maximum (IR LEDs On)
Current
1.5 A
Power over Ethernet
PoE Class 2 (6.49 W Max) device (802.3af)
Operating temperature
–10°C to 50°C (14°F to 122°F)
Storage temperature
–20°C to 60°C (–4°F to 140°F)
Relative humidity
95%
Weatherproof rating
IPX6 & IPX7
Sensor / DSP
2.0 Megapixel 1/2.8” Sony CMOS image sensor (Exmor)
Scanning system
Progressive scan
Day / Night
True Day / Night with ICR filter changer
Total pixels
1952(H) x 1116(V) 2.18 Megapixel
Effect pixels
1944(H) x 1104(V) 2.14 Megapixel
Minimum illumination
0 Lux (IR LEDs On)
I2 Distance
20 m (65.6 ft.) (4 LEDs)
Lens
3.6 mm Megapixel board lens
Field of View
Horizontal = 51.0 deg +/- 3 deg Vertical = 93.0 deg +/- 3 deg
Compression
H.264 High Profile @ level 4.0, Motion JPEG
Resolutions
1280 x 720 default (supporting up to 1920 x 1080 (FHD)
Video streaming
Supports multi streaming with H.264, MJPEG
Frame Rate
H.264: 30fps @ 1920 x 1080pMJPEG: 30fps @ VGA resolution
Bit Rate Control
Dual stream: H.264, MJPEGH.264: CBR / CVBR
Conformance
EN 60945:2002EMC Directive 2004/108/ECAustralia and New Zealand: C-Tick, Compliance Level 2
