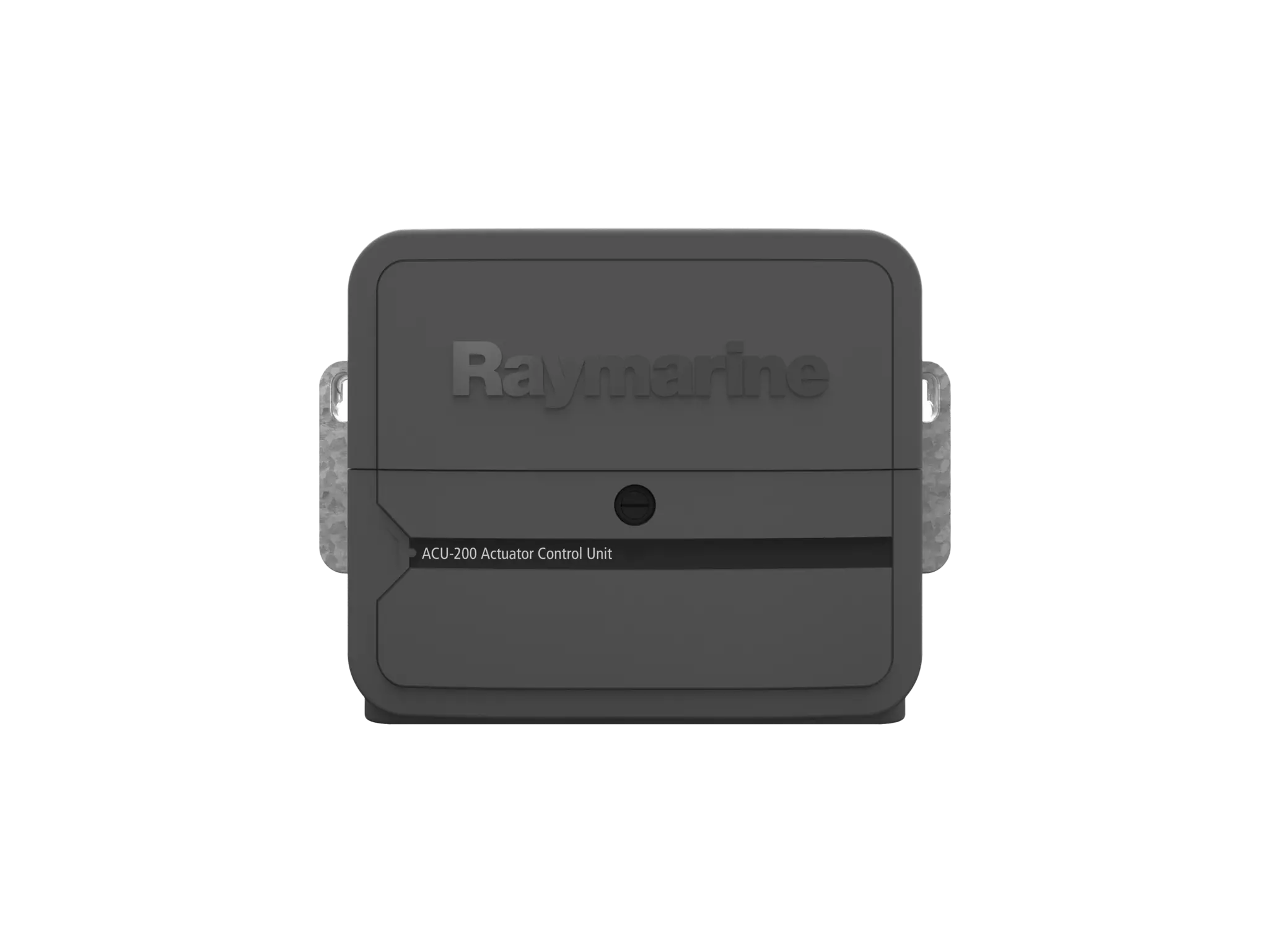

ACU-200
OEM: E70099
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70099"
Product Details (15)
Drive clutch output
Up to 4 A continuous, selectable between 12 / 24 V
Drive current output
Maximum continuous 15 A at supply voltage
Dimensions
Width: 285 mm (11.2 in), Height: 211.5 mm (8.3 in), Depth: 64.5 mm (2.5 in)
Weight
2.2 kg (4.84 lbs)
Relative humidity
Max. 93%
Waterproof rating
Drip resistant
Storage temperature
-30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature
-20 °C to +55 °C (-4 °F to 131 °F)
Standards
Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2
Power consumption (standby) - main power supply
300 mA (12 / 24 V)
Power output to SeaTalkng bus
3 A @ 12 V (fuse protected at 3 A)
Power consumption (standby) - SeaTalkng bus
20 mA (12 V)
Nominal supply voltage
12 / 24 V dc
Operating voltage range
10.8 V dc to 31.2 V dc
LEN (NMEA 2000 Load Equivalency Number)
1
