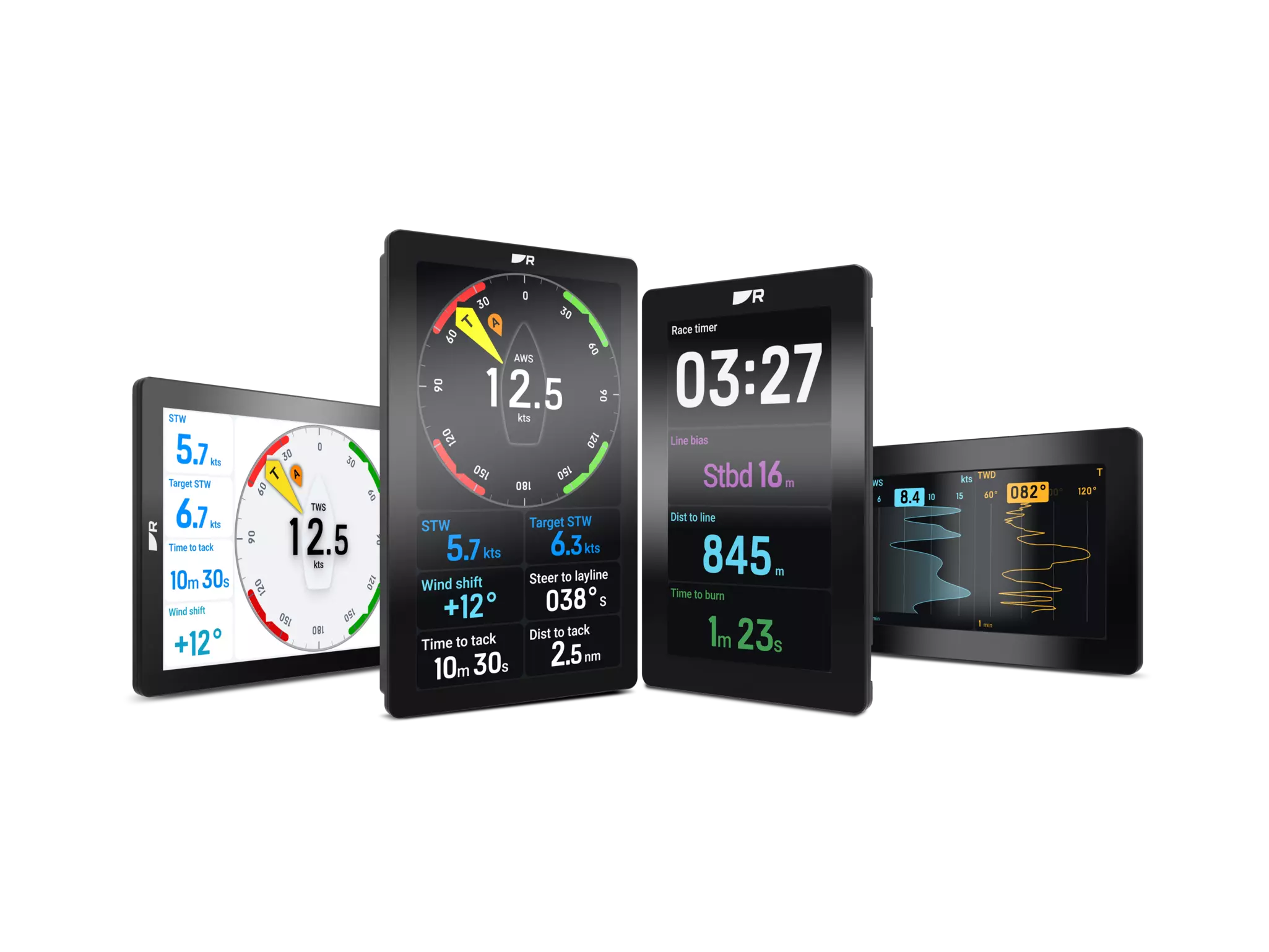

Alpha 9" Display
OEM: E70650
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70650"
Product Details (27)
Port separation distance
5.71 mm (0.22 in)
Weight
Alpha 7" display — 0.72 kg (1.59 lbs)Alpha 9" display — 1.18 kg (2.60 lbs)
Nominal supply voltage
12 V / 24 V dc
Operating voltage range
10.8 V to 32 V dc
Current
Alpha 7" display — 0.84 A (nominal) @ 12 V dc / 0.43 A (nominal) @ 24 V dcAlpha 9" display — 1.02 A (nominal) @ 12 V dc / 0.52 A (nominal) @ 24 V dc
Power consumption
Alpha 7" display — 10 W (maximum)Alpha 9" display — 12 W (maximum)
Inline fuse rating
8 A
Thermal breaker rating
8 A
Axiom
The Alpha Performance Displays require an Axiom Chartplotter in order to operate.
Data connections
1 x Daisy-chain connector.1 x Power / RayNet Ethernet connector
Operating temperature range
-25°C to +55°C (-13°F to +131°F)
Storage temperature range
-30°C to +70°C (-22°F to +158°F)
Relative humidity
93% Max
Waterproof rating
IPx6 and IPx7
Display screen
Alpha 7" display — 7” IPS TFT LCDAlpha 9" display — 9” IPS TFT LCD
Brightness / Luminance
1500 nits / 1500 cd/m2
Viewing angles
Portrait — 85 + / 85 +Landscape — 85 + / 85 +
Resolution
Alpha 7" display — 1024 (H) x 600 (V)Alpha 9" display — 1280 (H) x 720 (V)
PPI (Pixels Per Inch)
Alpha 7" display — 170 PPIAlpha 9" display — 163 PPI
Color
24-bit color (16.7 million colors)
Refresh rate
60 Hz
Europe, Australia & New Zealand
EN 60945:2002
Canada
ICES-003
USA
CFR47 Part 15
Japan / China
IACS section E10
Product markings
UKCACEAustralian TickWEEE DirectiveIndustry Canada
