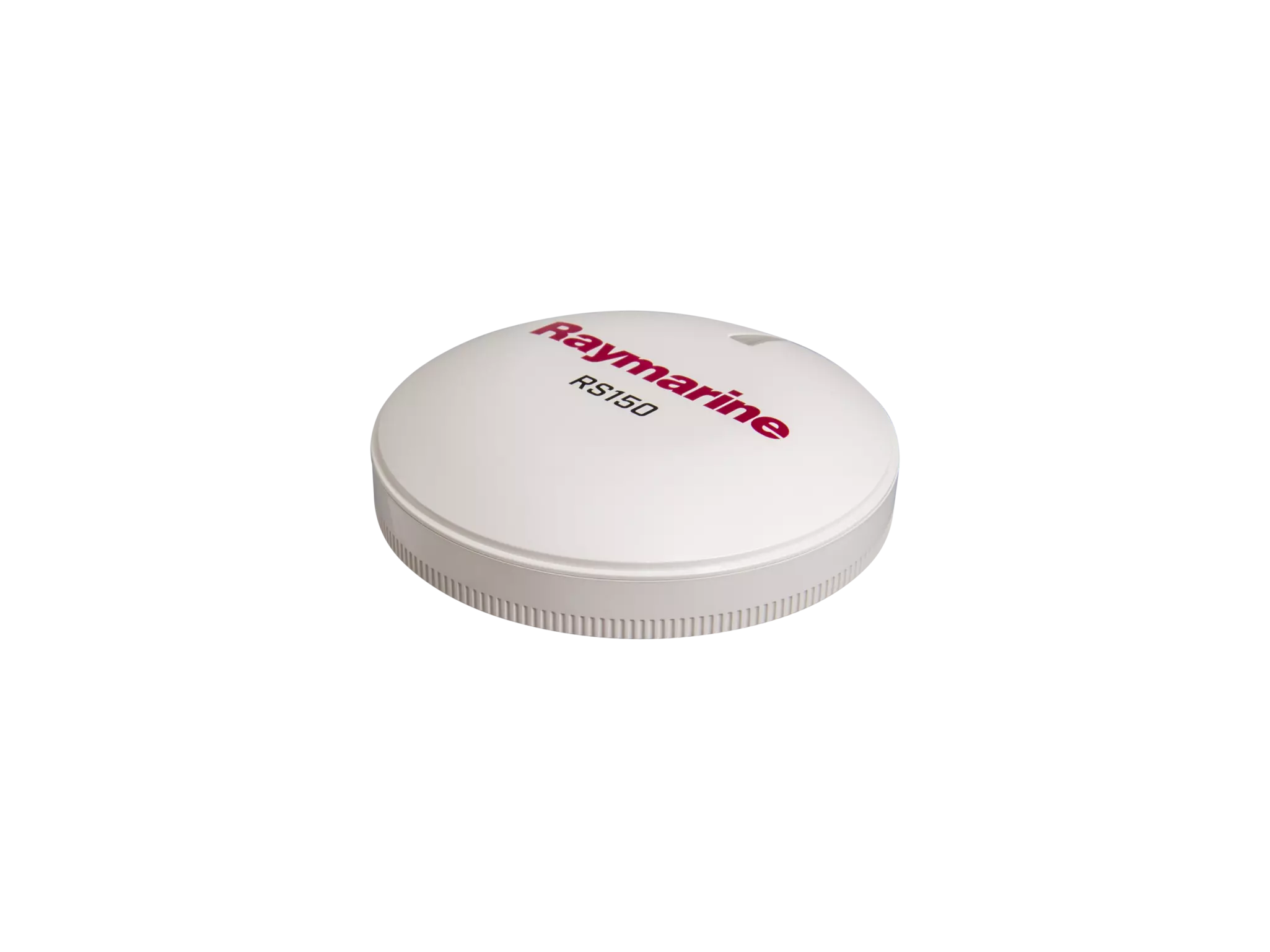

RS150 GPS Receiver
OEM: E70310
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70310"
Product Details (23)
Position accuracy
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum
WGS84
Satellite Differential Type (SBAS)
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India)
GNSS compatibility
BeiDou and Galileo ready (supported by future software update)
Differential acquisition
Automatic
Signal acquisition
Automatic
Sensitivity
-163 dBm (tracking), -147 dBm (acquisition)
Time to first fix from hot start
< 8 seconds
Time to first fix from cold start
< 2 minutes (< 45 seconds typical)
Speed accuracy (95%)
< 0.3 knots
Channels
72
Relative humidity
Up to 93%
Waterproof rating
IPx6
Storage temperature
-25°C to +70°C (-13°F to 158°F)
Operating temperature
-25°C to +55°C (-13°F to 131°F)
Connections
SeaTalkng
Dimensions
Height: 26.61 mm (1.05 in) Diameter: 108.48 mm (4.27 in)
Standards
Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2
Operating voltage range
9 V dc to 16 V dc (protected up to 32 V dc)
Power consumption
30 mA
Nominal supply voltage
12 V dc (Supplied by SeaTalkng network)
LEN (NMEA 2000 Load Equivalency Number)
1
