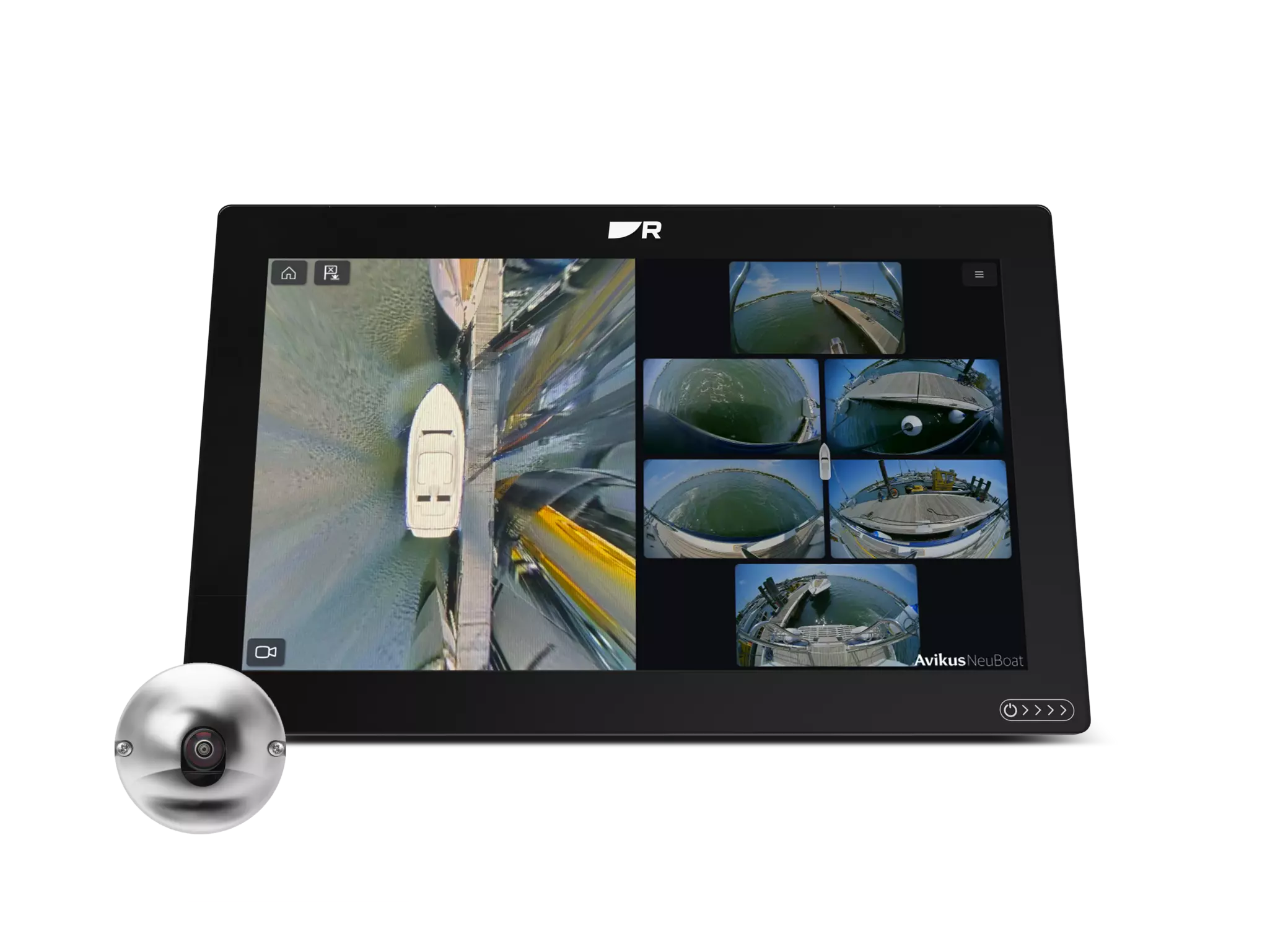

NeuBoat Dock
OEM: E70699
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70699"
Product Details (31)
Width
261.20 mm (10.28 in)
Height
180.50 mm (7.11 in)
Depth
75.00 mm (2.95 in)
Nominal supply voltage
12 V / 24 V dc
Operating voltage range
10.8 V to 32 V dc
Power consumption
45 W (maximum)
Current
1.5 A (nominal) @ 12 V dc / 0.9 A (nominal) @ 24 V dc
Operating temperature
-15° C (+ 5° F) to +55° C (131° F)
Storage temperature
-30° C (-22° F) to +70° C (158 °F)
Relative humidity
up to 93% @ 40° C (104° F)
Waterproof rating
IPx5
Sensor / DSP
IMX290
Total pixels
1920 (H) x 1080 (V)
Luminance
1 lux
Lens / Field of View
191.9° Horizontal FOV x 124° Vertical FOV
Output
TVI Differential
Resolution
1920 x 1080 (1080p)
Frame rate
30 fps
Europe, Australia & New Zealand
EN 60945:2002
Canada
ICES-003
USA
CFR47 Part 15
Product markings
UKCACERCMICESWEEE Directive
Inline fuse rating
10 A
Thermal breaker rating
10 A
Network connection ports
2x M12 (Ethernet) connection ports
Compression
H.265
Resolutions
1280 x 720 (720p)
Frame Rate
Up to 30 fps
Bit Rate
Up to 12 MB
Bit Rate Control
CBR
Height (including connectors)
188.00 mm (7.40 in)
